DIODESDatasheet (PDF)

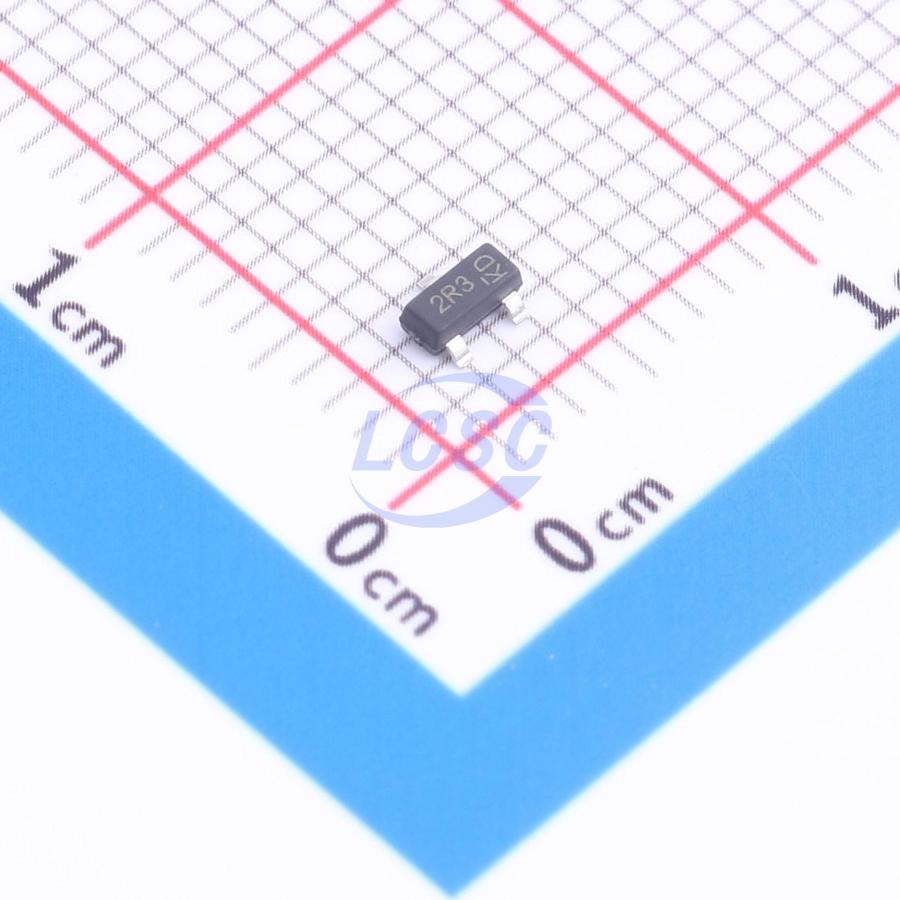

DESD15VL2BTQ-7
25VC Clamp TVS DIODE SOT-23-3
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DESD15VL2BTQ-7
- Store part #
- C6932222
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C6932222
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.92 | ₹99.60 |
| 50+ | ₹16.58 | ₹829.00 |
| 150+ | ₹14.90 | ₹2,235.00 |
| 500+ | ₹13.64 | ₹6,820.00 |
| 3,000+ | ₹12.63 | ₹37,890.00 |
| 6,000+ | ₹12.13 | ₹72,780.00 |
5 × ₹19.92
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DESD15VL2BTQ-7
₹99.60 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 230W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 16V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications.
Applications
- USB Modules
- HDMI Ports
- LVDs
Key features
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30kV, Contact ±30kV
- One Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
