DIODES

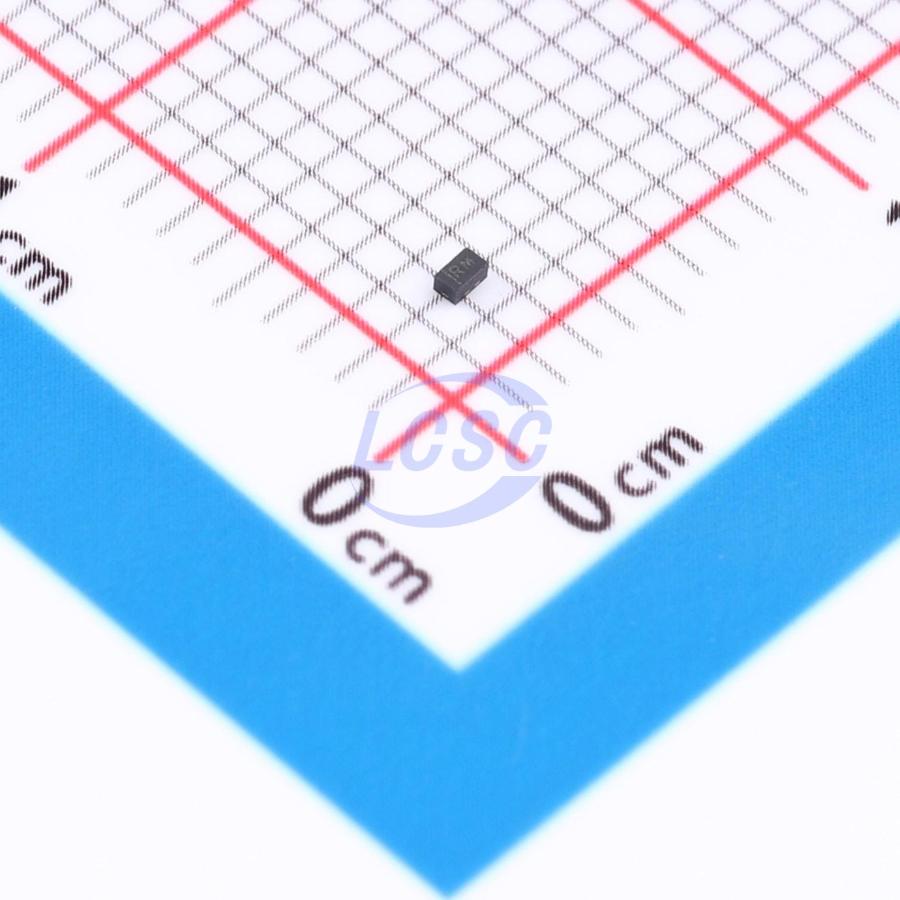

DESD18VF1BL-7B

17VC Clamp TVS DIODE X1-DFN1006-2

X1-DFN1006-2ROHS3 CompliantActive

Manufacturer: DIODES
Manufacturer part #: DESD18VF1BL-7B
Store part #: C5624761
Package / case: X1-DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C5624761

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹27.99	₹27.99
10+	₹27.35	₹273.50
30+	₹26.91	₹807.30
100+	₹26.26	₹2,626.00

Quantity (min 1)

1 × ₹27.99

₹27.99

excl. GST

₹33.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

DESD18VF1BL-7B

₹27.99 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 17V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 1A@8/20us
Number of Channels: 1
Voltage - Breakdown: 19V
type: TVS
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Applications

Cellular handsets
Portable electronics
Computers and peripherals

Key features

Low Profile Package (0.53mm Max) and Ultra-Small PCB Footprint Area (1.08mm*0.68mm)
Suitable for Compact Portable Electronics
Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±15kV, Contact ±14kV
1 Channel of ESD Protection
Low Channel Input Capacitance
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
An Automotive - Compliant Part is Available Under Separate Datasheet (DESD18VF1BLQ)
