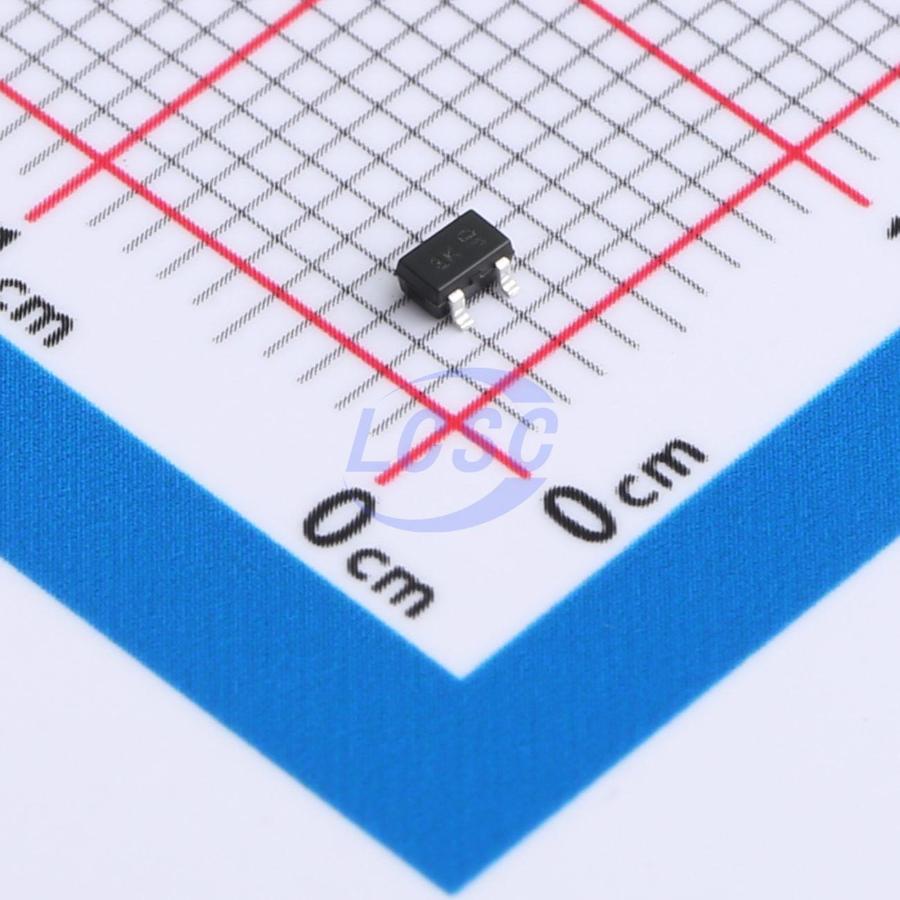

DIODES

DESD1CAN2WQ-7

50VC Clamp TVS DIODE SOT-323

SOT-323ROHS3 CompliantActive

TVS DIODE 24VWM 50VC SOT-323

Manufacturer: DIODES
Manufacturer part #: DESD1CAN2WQ-7
Store part #: C5244361
Package / case: SOT-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C5244361

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹6.69	₹33.45
50+	₹6.52	₹326.00
150+	₹6.40	₹960.00
500+	₹6.30	₹3,150.00

Quantity (min 5, multiples of 5)

5 × ₹6.69

₹33.45

excl. GST

₹39.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

DESD1CAN2WQ-7

₹33.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 50V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Number of Channels: 2
Voltage - Breakdown: 25.4V
type: TVS
Reverse Leakage Current (Ir): 1nA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.059 g

Overview

DESD1CAN2WQ is a next generation ESD and surge protection device packaged in a small footprint surface mount package. It is qualified to AEC-Q101, supported by a PPAP and is designed to protect two data lines of the Controller Area Network (CAN) in an automotive.

Applications

CAN Bus Protection
Industrial Control Network

Key features

150W Peak Power Dissipation per Line (8/20µs Waveform) Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±23kV, Contact ±23kV
2 Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
