DIODESDatasheet (PDF)

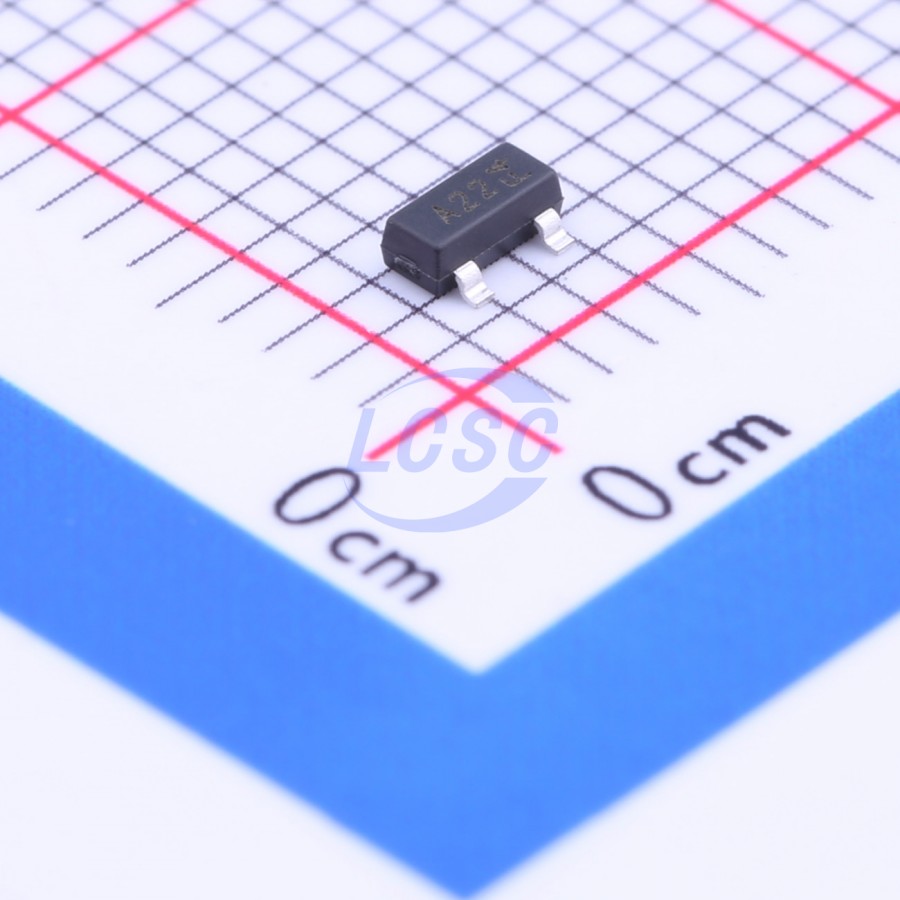

DESD2CAN2SOQ-7
41VC Clamp 5A@8/20us Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
ESD DIODE 24VWM 41VC SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DESD2CAN2SOQ-7
- Store part #
- C194383
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C194383
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.52 | ₹272.60 |
| 50+ | ₹42.47 | ₹2,123.50 |
| 150+ | ₹37.31 | ₹5,596.50 |
| 500+ | ₹30.87 | ₹15,435.00 |
| 3,000+ | ₹28.01 | ₹84,030.00 |
| 6,000+ | ₹26.27 | ₹1,57,620.00 |
5 × ₹54.52
₹272.60
excl. GST
₹321.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DESD2CAN2SOQ-7
₹272.60 for 5 + GST
Specifications
- Clamping Voltage
- 41V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 230W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 28V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
DESD2CAN2SOQ is a next-generation ESD and surge protection device in a compact SMT package. AEC-Q101 qualified with PPAP support, it is designed to protect the two data lines of the Controller Area Network (CAN) bus in automotive applications.
Applications
- CAN bus protection
- Industrial control networks
Key features
- 230W peak power dissipation per line (8/20μs waveform)
- ESD protection per IEC 61000-4-2: air discharge ±30kV, contact discharge ±30kV
- 2-channel ESD protection
- Low channel input capacitance
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- DESD2CAN2SOQ for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD2CAN,215#C75176Nexperia · SOT-23 | Nexperia | SOT-23 | 48,540 | ₹10.31 · 48,540 in stock | View |
 | ESDCAN24-2BLY#C246766ST · SOT-23 | ST | SOT-23 | 14,410 | ₹28.29 · 14,410 in stock | View |
 | TPESD24BS3#C521945TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,870 | ₹7.18 · 7,870 in stock | View |
 | PESD1CAN#C21713981GOODWORK · SOT-23 | GOODWORK | SOT-23 | 37,640 | ₹4.58 · 37,640 in stock | View |
 | SM24CANA-02HTG-GK#C53283254GOODWORK · SOT-23 | GOODWORK | SOT-23 | 2,470 | ₹5.53 · 2,470 in stock | View |
