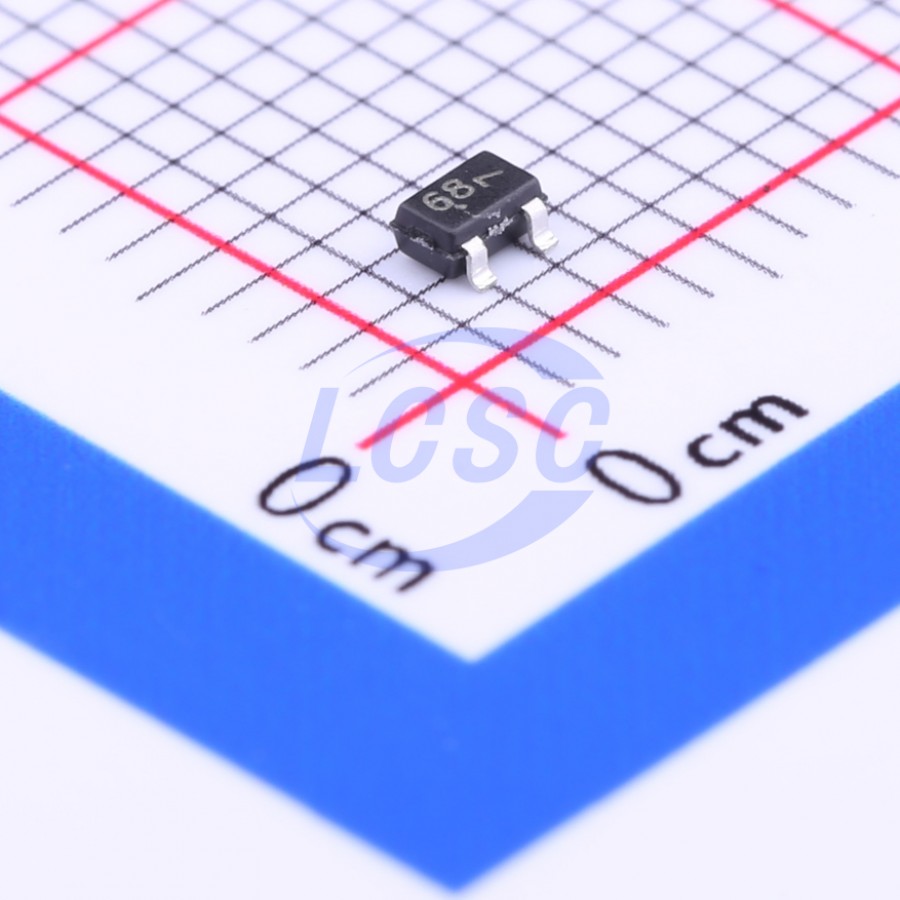

DF3A6.8FUT1G
16VC Clamp ESD DIODE SC-70
ESD DIODE 16VC SC-70
- Manufacturer
- onsemi
- Manufacturer part #
- DF3A6.8FUT1G
- Store part #
- C232543
- Package / case
- SC-70
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C232543
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.28 | ₹171.40 |
| 50+ | ₹27.28 | ₹1,364.00 |
| 150+ | ₹24.28 | ₹3,642.00 |
| 500+ | ₹20.53 | ₹10,265.00 |
| 3,000+ | ₹18.87 | ₹56,610.00 |
| 6,000+ | ₹17.87 | ₹1,07,220.00 |
5 × ₹34.28
₹171.40
excl. GST
₹202.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DF3A6.8FUT1G
₹171.40 for 5 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.303 g
Overview
These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- computers
- printers
- business machines
- communication systems
- medical equipment
Key features
- Pb-Free Package is Available
- SC-70 Package Allows Two Separate Unidirectional Configurations
- Low Leakage <1.0 μA @ 5.0 V
- Breakdown Voltage: 6.4 - 7.2 V @ 5.0 mA
- ESD Protection Meeting: 16 kV Human Body Model 30 kV Contact = IEC61000−4−2
- Peak Power: 24 W @ 1.0 ms (Unidirectional)
- Peak Power: 150 W @ 20 μs (Unidirectional)
