DIOODatasheet (PDF)

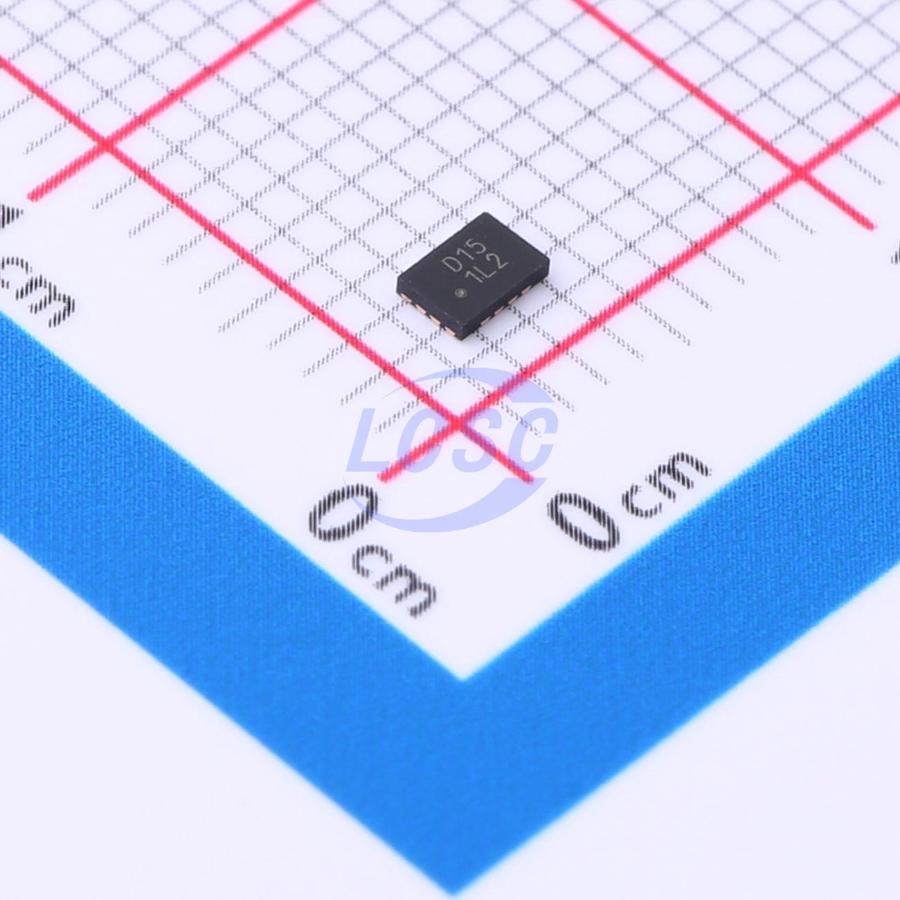

DIO1567LN16
1.6V~4.5V 4 2.7Ω 2:1 DQFN-16 Analog Switches - Special Purpose
DQFN-16RoHSActive
- Manufacturer
- DIOO
- Manufacturer part #
- DIO1567LN16
- Store part #
- C2990567
- Package / case
- DQFN-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C2990567
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.70 | ₹258.50 |
| 50+ | ₹40.84 | ₹2,042.00 |
| 150+ | ₹36.06 | ₹5,409.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 3,000+ | ₹26.72 | ₹80,160.00 |
| 6,000+ | ₹24.98 | ₹1,49,880.00 |
5 × ₹51.70
₹258.50
excl. GST
₹305.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO1567LN16
₹258.50 for 5 + GST
Specifications
- Turn-on time
- 57ns
- Turn-off time
- 55ns
- Voltage - Supply
- 1.6V~4.5V
- Number of Channels
- 4
- -3dB Bandwidth
- 200MHz;37MHz
- Ron
- 2.7Ω
- Switch Circuit
- 2:1
- Propagation Delay (tpd)
- 500ps
- Operating Temperature
- -40℃~+85℃
- Con
- 10pF;100pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
The DIO1567 is a quad Single-Pole, Double-Throw (SPDT) analog switch targeted at dual SIM card multiplexing. DIO1567 operates from a single 1.6V to 4.5V supply and features an ultra-low on resistance of 0.65Ω at SIM path to ensure minimal voltage drop in other path. This device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation. DIO1567 features very low quiescent current even when the control voltage is lower than the VCC supply. This allows mobile handset applications direct interface with the baseband processor general-purpose I/Os. DIO1567 provides two packages with Green DQFN-16 and TQFN-16.
Applications
- Cell-Phone/PDA
- Set-Top Box
- Digital Camera
- Notebook
- TV/LCD Monitor
Key features
- Switch Type: SPDT(4X)
- Voltage Operation: 1.6V to 4.5V
- Low On Resistance: 0.65Ω at SIM path; 2.7Ω at other path
- Bandwidth >200MHz
- 10pF c₀ₙ at DAT/CLK/RST path
- Low power consumption
- Packaged: 16-Lead DQFN and 16-Lead TQFN 6kV HBM ESD
