DIOODatasheet (PDF)

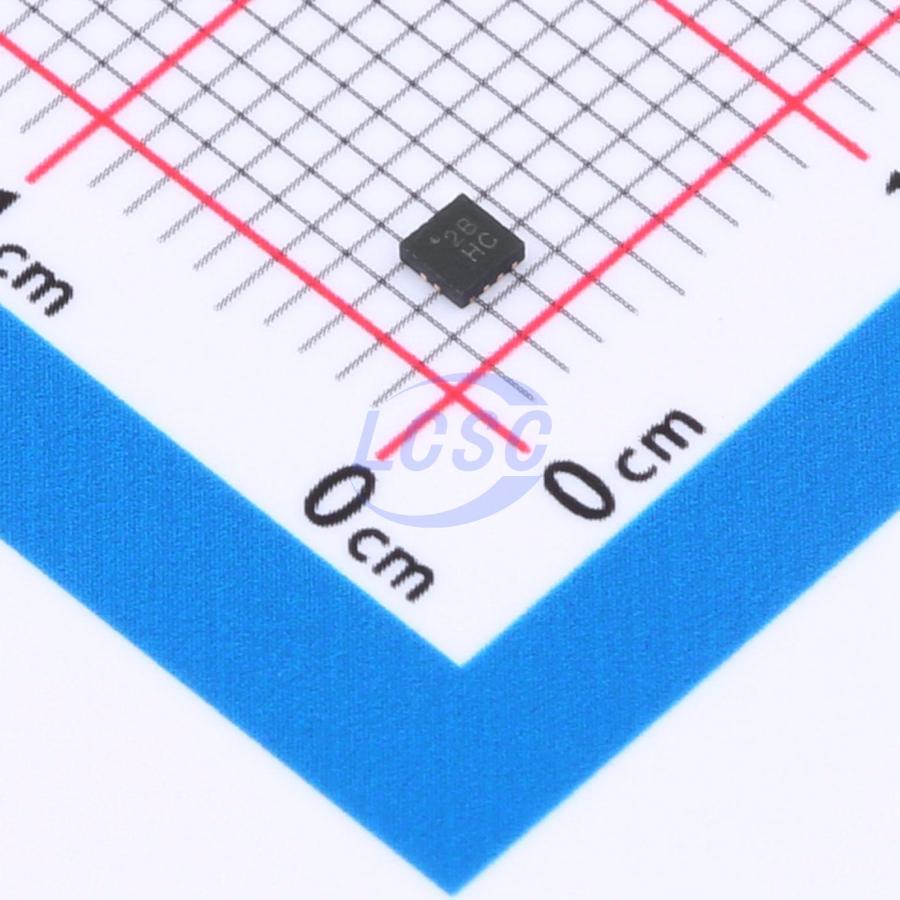

DIO3303LN12
2.7V~4.4V 3 720MHz 3.5Ω 3:1 USB DQFN-12(1.8x1.8) Analog Switches - Special Purpose
DQFN-12(1.8x1.8)RoHSActive
3:1 USB 2.0 High-Speed USB Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO3303LN12
- Store part #
- C22370202
- Package / case
- DQFN-12(1.8x1.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,006 in stock
#C22370202
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.80 | ₹97.80 |
| 10+ | ₹78.71 | ₹787.10 |
| 30+ | ₹69.17 | ₹2,075.10 |
| 100+ | ₹59.85 | ₹5,985.00 |
| 500+ | ₹54.22 | ₹27,110.00 |
| 1,000+ | ₹51.17 | ₹51,170.00 |
1 × ₹97.80
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO3303LN12
₹97.80 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~4.4V
- Number of Channels
- 3
- -3dB Bandwidth
- 720MHz
- Ron
- 3.5Ω
- Switch Circuit
- 3:1
- Operating Temperature
- -40℃~+85℃
- Features
- Bidirectional analog channel
- Applications
- USB
- Con
- 6.8pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The DIO3303 is a SP3T (single pole/triple throw) switch capable of handling 3 different USB 2.0 high-speed data signal inputs with compliance of USB 2.0 high speed signal eye pattern. The DIO3303 can also handle all USB 1.1/2.0 full-speed and UART signals as well with minimum additive distortion. It is available in DQFN-12 packages, and operates over a temperature range of -40°C to 85°C.
Applications
- Cell phones
- PDAs and MP3s
- Portable instrumentation
- Battery powered communications
- Computer peripherals
Key features
- Low RON at USB channel
- Low USB CON: 6.8 pF
- USB switch -3 dB bandwidth: 720 MHz
- High crosstalk and off-isolation
- Voltage supply operation: 2.7 V to 4.4 V
- 5.25 V tolerance on COM pin
- Green packaged: DQFN-12 4 kV HBM ESD rating, 2 kV CDM ESD rating
