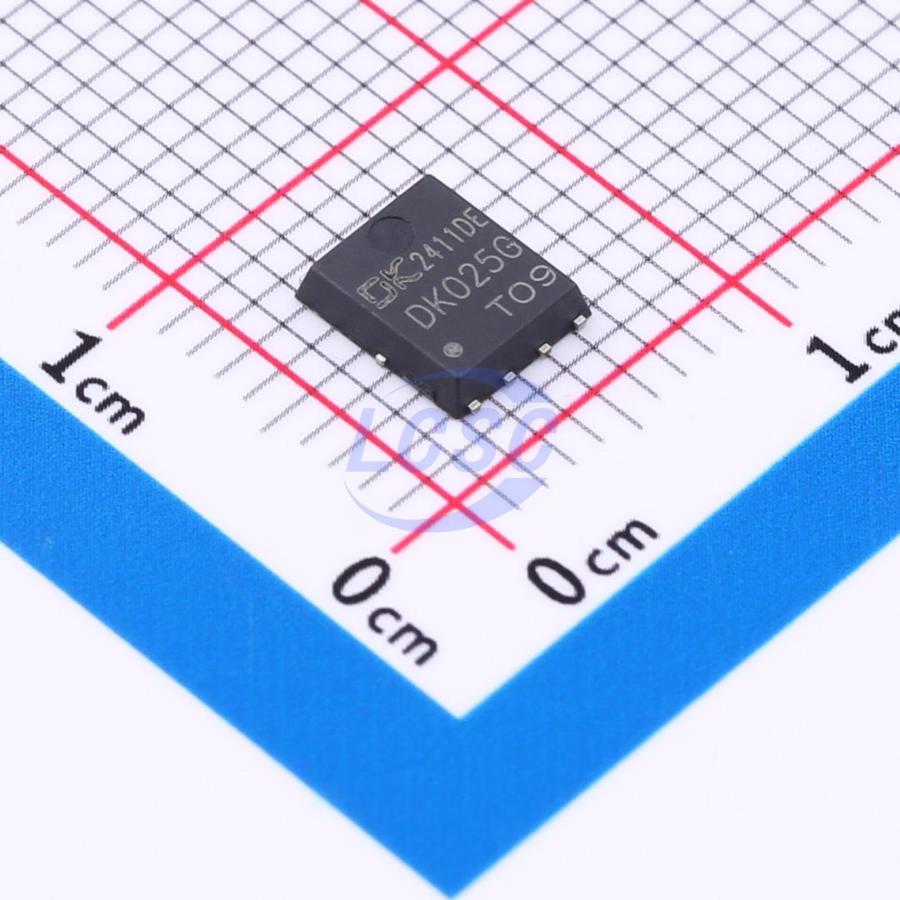

DK025G

DK025G is a highly integrated quasi-resonant flyback AC-DC power switch IC incorporating a 700V/800mΩ GaN HEMT. It monitors the drain-to-source voltage (VDS) of the power switch and turns it on when VDS reaches its minimum value, thereby reducing switching losses and improving EMI. DK025G greatly simplifies the design and manufacturing of flyback AC-DC converters, particularly for applications requiring high conversion efficiency and high power density. It features comprehensive protection functions: output OVP, VCC over/under-voltage protection, OTP, open-loop protection, output OCP, and more. DK025G is a current-mode controlled quasi-resonant flyback AC-DC power management switch IC. It integrates a 700V/800mΩ GaN HEMT, control circuitry, and gate drive circuitry on-chip, significantly reducing the external component count and effectively lowering overall system cost. Operating in DCM, when the core energy is fully released and the primary inductance resonates with the GaN HEMT junction capacitance to its minimum value, the primary power switch turns on, reducing turn-on switching losses and improving efficiency across the full power range.

Applications

• High power density fast chargers, adapters
• Laptop adapters, tablet adapters, set-top box adapters, etc.
• Auxiliary and standby power supplies

Key features

• Peak efficiency 92.7%
• Switching frequency up to 250KHz
• Standby power consumption below 50mW
• QR operating mode
• Built-in algorithm-optimized valley detection and valley lockout circuits
• Built-in demagnetization detection circuit
• Built-in frequency jittering circuit for effective EMI improvement
• Built-in high/low voltage input power compensation circuit for consistent maximum output power across input voltage range
• Halogen-free and RoHS compliant
• IEC 62368-1:2018 safety certified, No. NO123514
• Package: PDFN5*6
