DIODESDatasheet (PDF)

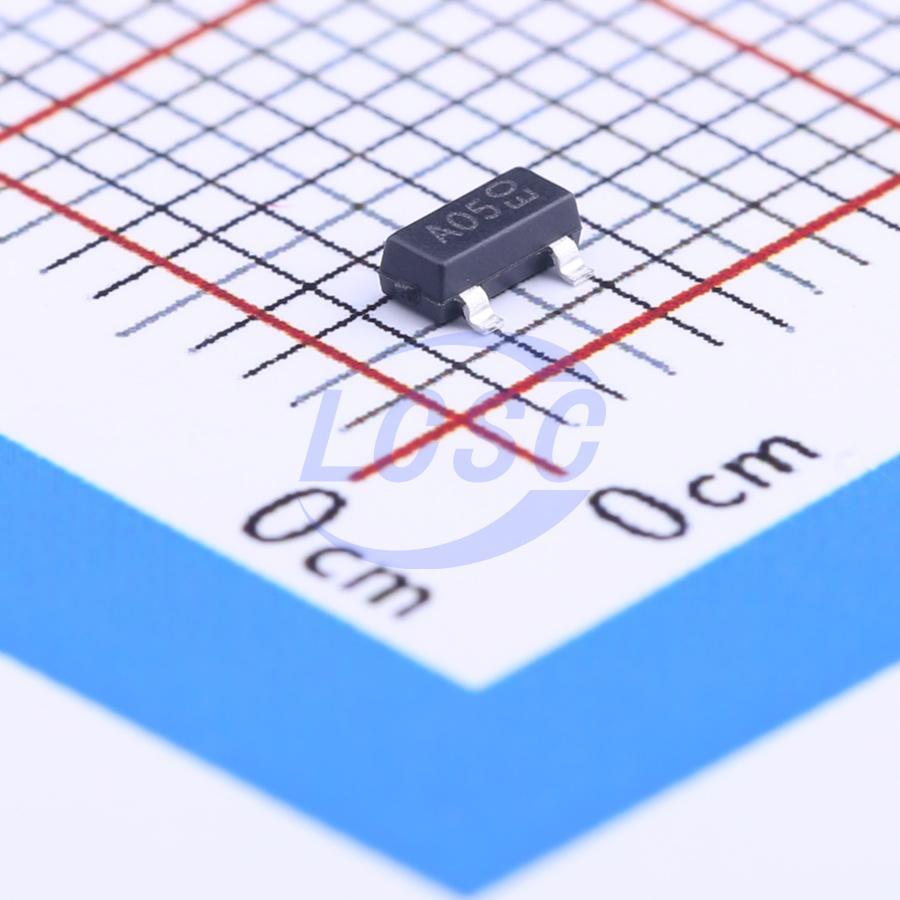

DLP05LC-7-F
11VC Clamp 17A@8/20us Ipp TVS DIODE SOT-23
SOT-23ROHS CompliantActive
TVS DIODE 5VWM 11VC SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DLP05LC-7-F
- Store part #
- C110496
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
137 in stock
#C110496
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.49 | ₹58.49 |
| 10+ | ₹46.11 | ₹461.10 |
| 30+ | ₹40.88 | ₹1,226.40 |
| 100+ | ₹34.15 | ₹3,415.00 |
| 500+ | ₹31.32 | ₹15,660.00 |
| 1,000+ | ₹29.58 | ₹29,580.00 |
1 × ₹58.49
₹58.49
excl. GST
₹69.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DLP05LC-7-F
₹58.49 for 1 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
Applications
- Typical USB data line application
- Typical VCC power line protection
Key features
- 300W peak pulse power (tp = 8×20μs)
- Transient protection for data, signal, and VCC buses, compliant with IEC61000-4-2 Level 4 (ESD) and IEC 61000-4-4 (EFT)
- Low capacitance, typical value 1.6pF
- Low leakage current
- Unidirectional configuration
- Surface mount package, ideal for automatic insertion
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
