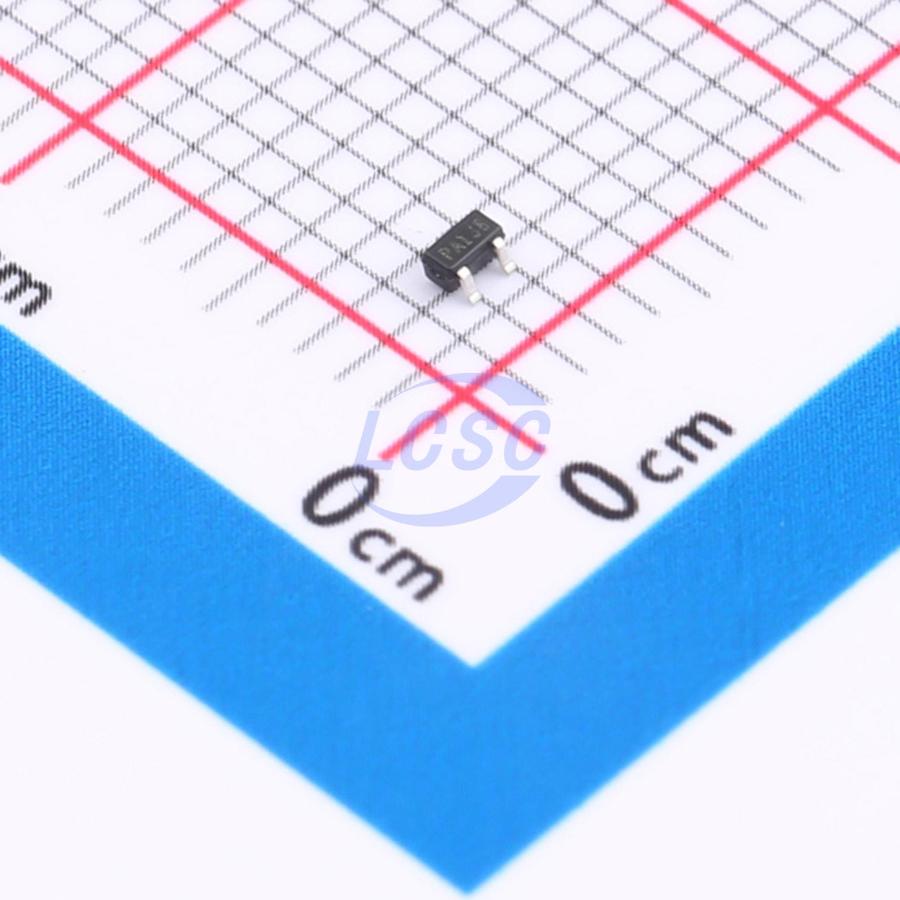

DMG1013TQ-7
P-Channel 20V 460mA 270mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET P-CH 20V 460mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMG1013TQ-7
- Store part #
- C6934833
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C6934833
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.81 | ₹54.05 |
| 50+ | ₹8.64 | ₹432.00 |
| 150+ | ₹7.57 | ₹1,135.50 |
| 500+ | ₹6.76 | ₹3,380.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.78 | ₹34,680.00 |
5 × ₹10.81
₹54.05
excl. GST
₹63.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG1013TQ-7
₹54.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 12.07pF
- Current - Continuous Drain(Id)
- 460mA
- Ciss-Input Capacitance
- 59.76pF
- Pd - Power Dissipation
- 270mW
- Reverse Transfer Capacitance (Crss)
- 6.36pF
- RDS(on)
- 500mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 580pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it well-suited for DC-DC converters, load switches, and power management functions.
Applications
- DC-DC Converters - Load Switches - Power Management Functions
Key features
- High-speed switching
- Low gate charge: QSW = 16 nC (typical)
- Low output charge: Qoss = 74 nC (typical)
- Low drain-source on-resistance: RDS(ON) = 0.77 mΩ (typical) (VGS = 10 V)
- Low leakage current: IDSS = 10 μA (max) (VDS = 30 V)
- Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 1 mA)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2006KT5#C41355141Siliup · SOT-523 | Siliup | SOT-523 | 400 | ₹2.09 · 400 in stock | View |
 | DMG1013T-7#C96676DIODES · SOT-523 | DIODES | SOT-523 | 1,22,450 | ₹6.91 · 1,22,450 in stock | View |
 | TPM2019-3#C2835416TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,670 | ₹8.90 · 2,670 in stock | View |
 | TPM1013ER3-1#C5182075TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,760 | ₹5.97 · 2,760 in stock | View |
 | SI1013R#C2830307TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 10,300 | ₹5.21 · 10,300 in stock | View |
