DIODESDatasheet (PDF)

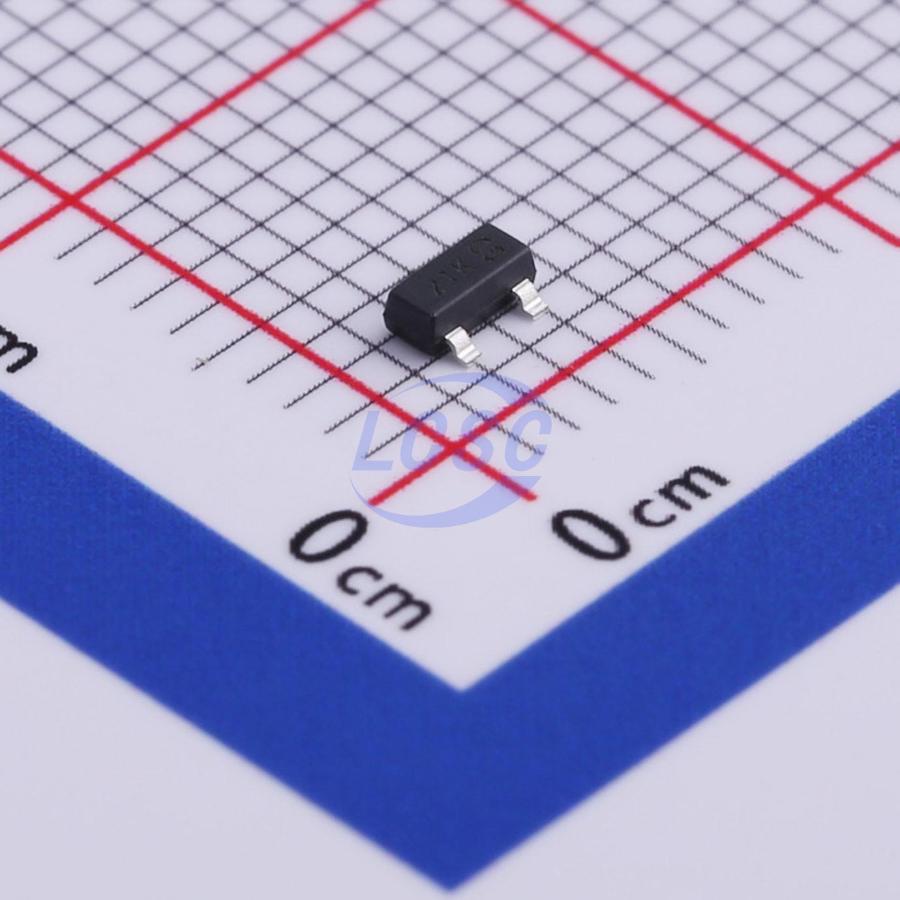

DMG2301LK-7
P-Channel 20V 2.4A 840mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 2.4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG2301LK-7
- Store part #
- C508195
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,635 in stock
#C508195
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.28 | ₹211.40 |
| 50+ | ₹33.04 | ₹1,652.00 |
| 150+ | ₹29.08 | ₹4,362.00 |
| 500+ | ₹24.14 | ₹12,070.00 |
| 3,000+ | ₹20.76 | ₹62,280.00 |
| 6,000+ | ₹19.43 | ₹1,16,580.00 |
5 × ₹42.28
₹211.40
excl. GST
₹249.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2301LK-7
₹211.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 36pF
- Current - Continuous Drain(Id)
- 2.4A
- Ciss-Input Capacitance
- 156pF
- Pd - Power Dissipation
- 840mW
- Reverse Transfer Capacitance (Crss)
- 28pF
- RDS(on)
- 160mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 3.4nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power Management
- DC-DC Converter
- Motor Control
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- ESD-protected gate
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- Device meets JEDEC standards (as referenced in AEC-Q) with high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPZXM61P02FTA#C5311014TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 730 | ₹9.30 · 730 in stock | View |
 | DMG2301L#C7472914TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,470 | ₹8.15 · 2,470 in stock | View |
 | 2301-B#C22362802GOFORD · SOT-23 | GOFORD | SOT-23 | 150 | ₹1.60 · 150 in stock | View |
 | WST3427#C719086Winsok Semicon · SOT-23N | Winsok Semicon | SOT-23N | 5,070 | ₹6.09 · 5,070 in stock | View |
 | AT2301BSA#C52766324AnBon · SOT-23 | AnBon | SOT-23 | 2,100 | ₹2.08 · 2,100 in stock | View |
