DIODESDatasheet (PDF)

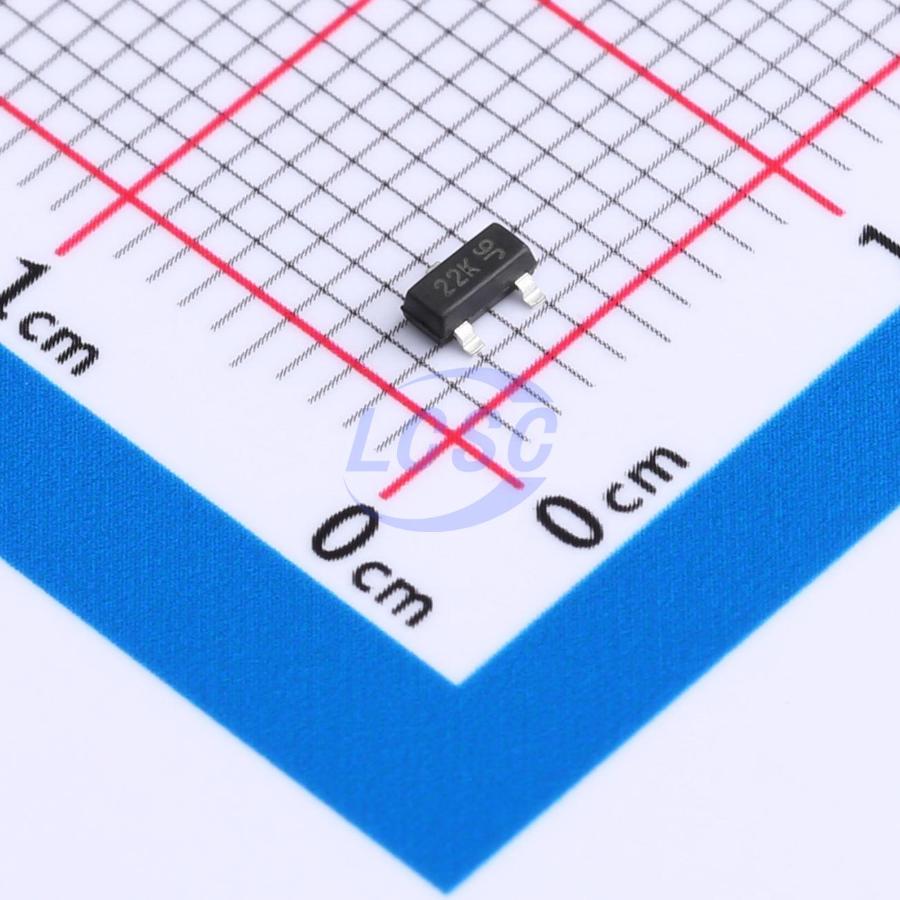

DMG2302UKQ-7
N-Channel 20V 2.8A 0.66W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 2.8A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG2302UKQ-7
- Store part #
- C5224573
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
505 in stock
#C5224573
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.18 | ₹265.90 |
| 50+ | ₹43.58 | ₹2,179.00 |
| 150+ | ₹39.47 | ₹5,920.50 |
| 500+ | ₹34.33 | ₹17,165.00 |
| 3,000+ | ₹30.91 | ₹92,730.00 |
| 6,000+ | ₹29.53 | ₹1,77,180.00 |
5 × ₹53.18
₹265.90
excl. GST
₹313.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2302UKQ-7
₹265.90 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.8A
- Ciss-Input Capacitance
- 130pF
- Pd - Power Dissipation
- 660mW
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 90mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for backlighting, power management, DC-DC converters, and motor control. The gate features ESD protection.
Applications
- Backlighting
- Power management
- DC-DC converter
- Motor control
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Gate ESD protection
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified for high reliability
- PPAP capable
