DMG2302UQ
N-Channel 20V 6.8A 1.5W Surface Mount SOT-23
SOT-23ROHS CompliantActive

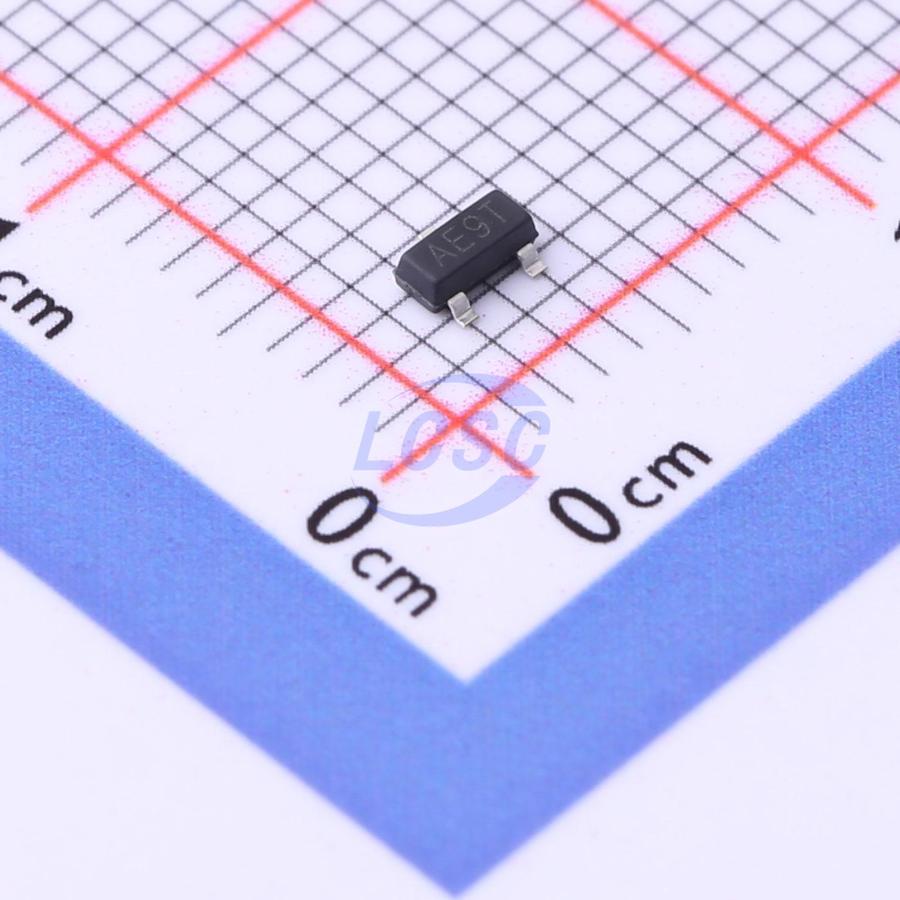

MOSFET N-CH 20V 6.8A SOT-23
- Manufacturer
- Leiditech
- Manufacturer part #
- DMG2302UQ
- Store part #
- C3647039
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3647039
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.37 | ₹41.85 |
| 50+ | ₹8.19 | ₹409.50 |
| 150+ | ₹8.07 | ₹1,210.50 |
| 500+ | ₹7.94 | ₹3,970.00 |
5 × ₹8.37
₹41.85
excl. GST
₹49.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2302UQ
₹41.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 780pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.8A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 21mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The DMG2302UQ uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application.
Applications
- Lithium battery protection
- Wireless impact
- Mobile phone fast charging
Key features
- VDS = 20V
- ID = 6.8A
- Ros(ON) < 21mΩ @ Vos = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2310ES#C3647034Leiditech · SOT-23 | Leiditech | SOT-23 | 2,620 | ₹14.62 · 2,620 in stock | View |
 | PMV20XNEA#C3647036Leiditech · SOT-23 | Leiditech | SOT-23 | 165 | ₹15.35 · 165 in stock | View |
 | STR2N2VH5#C3647038Leiditech · SOT-23 | Leiditech | SOT-23 | 50 | ₹15.33 · 50 in stock | View |
 | SE2312#C3647033Leiditech · SOT-23 | Leiditech | SOT-23 | On request | ₹15.35 · 0 in stock | View |
 | NVR4501N#C3647035Leiditech · SOT-23 | Leiditech | SOT-23 | On request | ₹15.35 · 0 in stock | View |
