TECH PUBLICDatasheet (PDF)

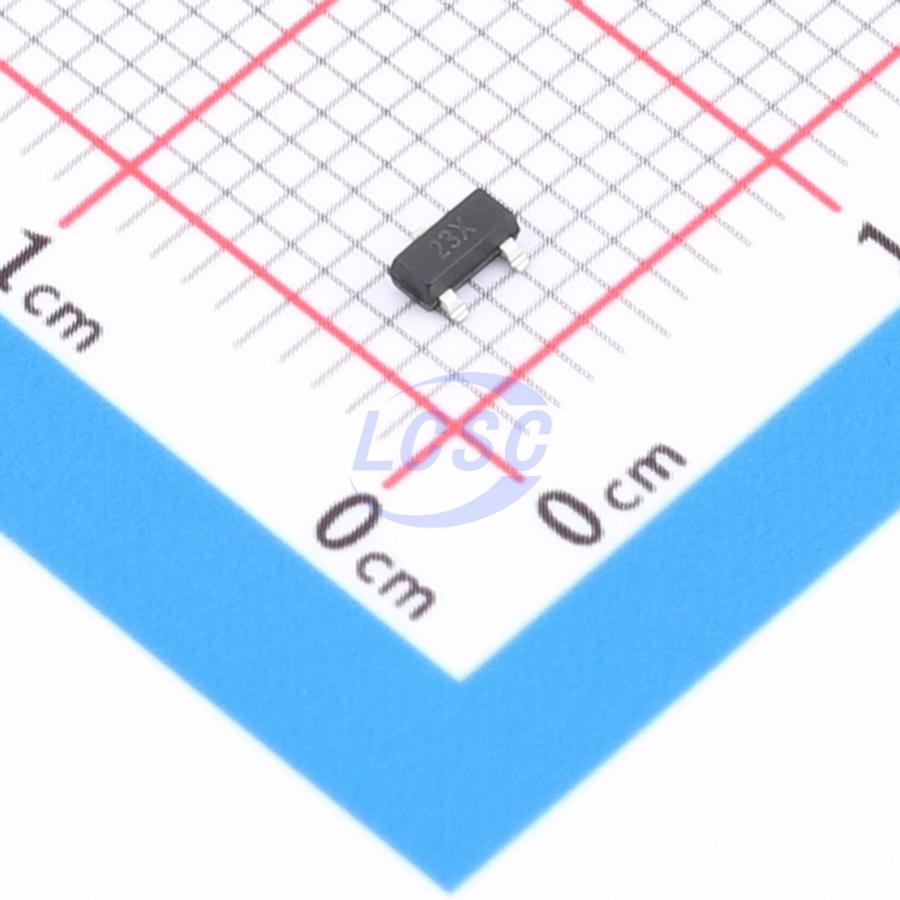

DMG2305UX-TP
1.8W 20V 6A 25mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DMG2305UX-TP
- Store part #
- C53100470
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,560 in stock
#C53100470
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.36 | ₹53.60 |
| 100+ | ₹4.22 | ₹422.00 |
| 300+ | ₹3.65 | ₹1,095.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.87 | ₹17,220.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹5.36
₹53.60
excl. GST
₹63.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2305UX-TP
₹53.60 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 1.8W
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 300pF
- RDS(on)
- 25mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.5nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 650mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
Applications
- Interface switches
- Portable devices and batteries
- Load switches
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2399DS#C5123899TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 720 | ₹16.58 · 720 in stock | View |
 | SI2305CDS#C5182095TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 16,105 | ₹13.55 · 16,105 in stock | View |
 | SI2333CDS#C5122040TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 1,820 | ₹16.91 · 1,820 in stock | View |
 | SI2323CDS#C5122038TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 1,060 | ₹15.00 · 1,060 in stock | View |
 | SI2333DDS#C5122041TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 3,465 | ₹19.14 · 3,465 in stock | View |
