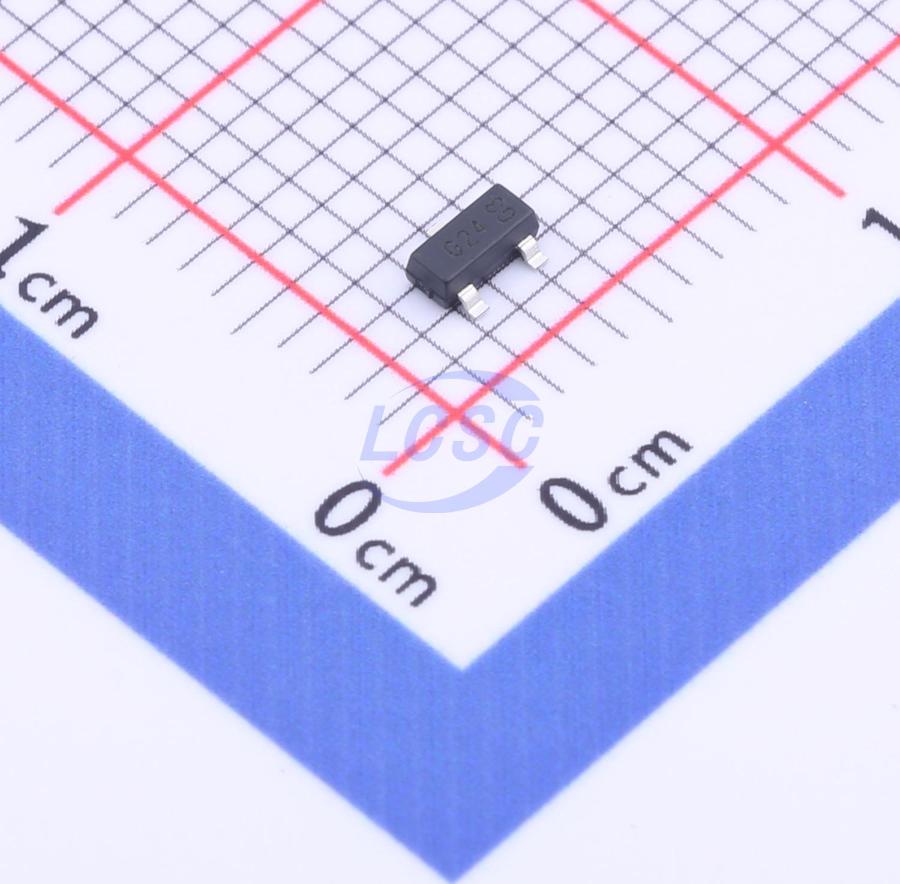

DMG2307LQ-7
P-Channel 30V 3.8A Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 30V 3.8A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG2307LQ-7
- Store part #
- C780824
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C780824
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.14 | ₹35.70 |
| 50+ | ₹6.96 | ₹348.00 |
| 150+ | ₹6.84 | ₹1,026.00 |
| 500+ | ₹6.72 | ₹3,360.00 |
5 × ₹7.14
₹35.70
excl. GST
₹42.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2307LQ-7
₹35.70 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.8A
- Ciss-Input Capacitance
- 371.3pF
- RDS(on)
- 90mΩ@10V;134mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4nC@4.5V;8.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management function
- Load switch for portable devices
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- DMG2307LQ is designed for automotive applications requiring specific change control; the product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG2307L#C5182052TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,910 | ₹10.23 · 2,910 in stock | View |
 | DMG2307L-7#C102620DIODES · SOT-23 | DIODES | SOT-23 | 96,315 | ₹28.15 · 96,315 in stock | View |
 | SLDMP3098L#C55318446Slkor · SOT-23 | Slkor | SOT-23 | 50 | ₹3.98 · 50 in stock | View |
 | HSS3407E#C53243987HUASHUO · SOT-23-3 | HUASHUO | SOT-23-3 | 100 | ₹8.16 · 100 in stock | View |
 | SL2347#C5330386Slkor · SOT-23 | Slkor | SOT-23 | 5,770 | ₹8.59 · 5,770 in stock | View |
