DIODESDatasheet (PDF)

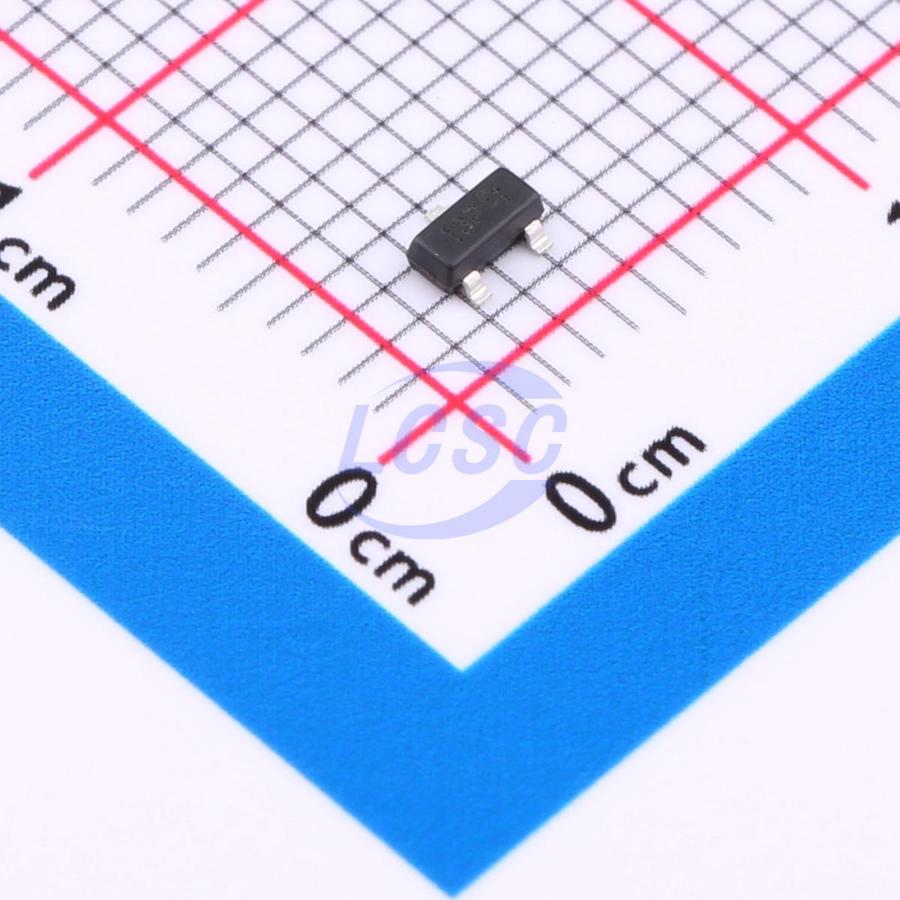

DMG302PU-7
P-Channel 25V 0.17A 0.33W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 25V 0.17A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG302PU-7
- Store part #
- C5624101
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C5624101
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.06 | ₹200.30 |
| 50+ | ₹33.71 | ₹1,685.50 |
| 150+ | ₹30.98 | ₹4,647.00 |
| 500+ | ₹27.60 | ₹13,800.00 |
| 3,000+ | ₹26.08 | ₹78,240.00 |
| 6,000+ | ₹25.18 | ₹1,51,080.00 |
5 × ₹40.06
₹200.30
excl. GST
₹236.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG302PU-7
₹200.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 170mA
- Ciss-Input Capacitance
- 27.2pF
- Pd - Power Dissipation
- 330mW
- Reverse Transfer Capacitance (Crss)
- 1.7pF
- RDS(on)
- 13Ω@2.7V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 350pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This next-generation MOSFET is designed to minimize on-resistance RDS(ON) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converter - Power Management Function
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Compact SMT package
- ESD-protected gate (Human Body Model >6kV)
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS84AKVL#C549760Nexperia · SOT-23 | Nexperia | SOT-23 | 2,300 | ₹6.44 · 2,300 in stock | View |
 | BSS84AK,215#C127273Nexperia · SOT-23 | Nexperia | SOT-23 | 62,020 | ₹4.23 · 62,020 in stock | View |
 | LWS6T10AM#C53426738Lewa Micro · SOT-23 | Lewa Micro | SOT-23 | 2,540 | ₹3.04 · 2,540 in stock | View |
| BSS84#C53134295HL · SOT-23 | HL | SOT-23 | 3,600 | ₹2.39 · 3,600 in stock | View | |
 | NDS0605#C53477443YTL · SOT-23 | YTL | SOT-23 | 2,940 | ₹5.70 · 2,940 in stock | View |
