DIODESDatasheet (PDF)

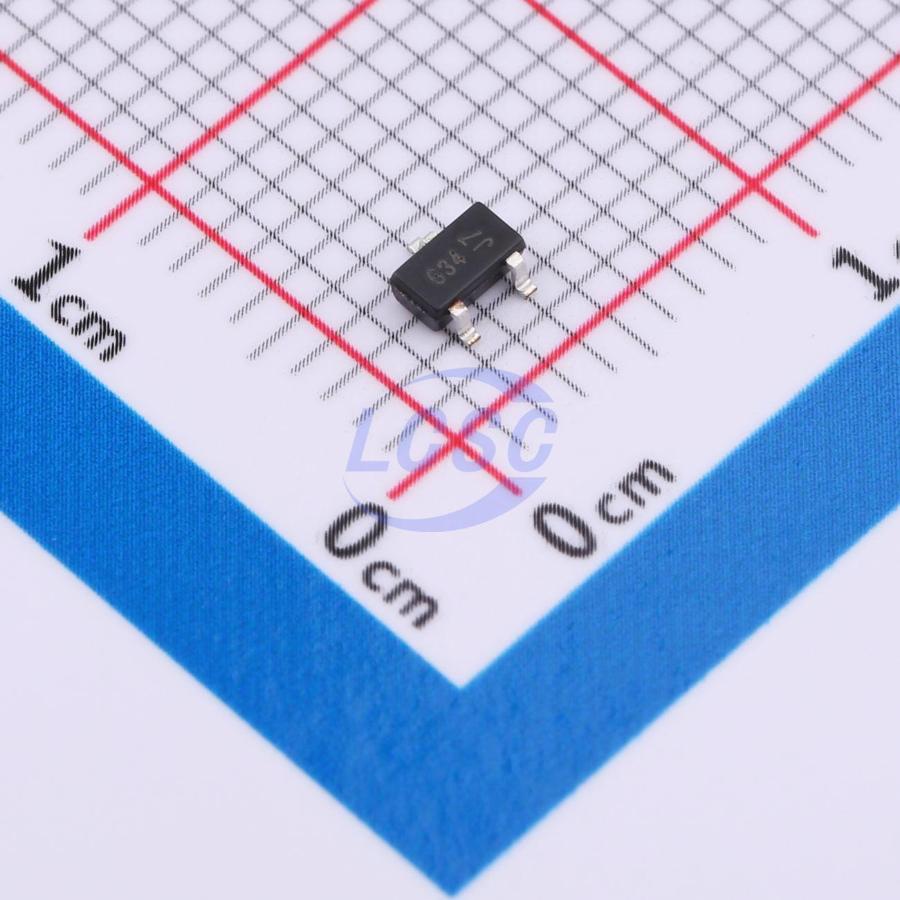

DMG3401LSNQ-7
P-Channel 30V 3.7A 1.2W Surface Mount SC-59-3
SC-59-3ROHS3 CompliantActive
MOSFET P-CH 30V 3.7A SC-59-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3401LSNQ-7
- Store part #
- C6183654
- Package / case
- SC-59-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C6183654
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.17 | ₹170.85 |
| 50+ | ₹27.12 | ₹1,356.00 |
| 150+ | ₹24.11 | ₹3,616.50 |
| 500+ | ₹20.35 | ₹10,175.00 |
| 3,000+ | ₹18.67 | ₹56,010.00 |
| 6,000+ | ₹17.66 | ₹1,05,960.00 |
5 × ₹34.17
₹170.85
excl. GST
₹201.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3401LSNQ-7
₹170.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 103pF
- Current - Continuous Drain(Id)
- 3.7A
- Ciss-Input Capacitance
- 1.326nF
- Pd - Power Dissipation
- 1.2W
- Reverse Transfer Capacitance (Crss)
- 71pF
- RDS(on)
- 41mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This next-generation small-signal enhancement-mode MOSFET features low on-resistance and fast switching characteristics, making it ideal for high-efficiency power management applications.
Applications
- Motor Control
- Backlight Dimming
- DC-DC Converter
- Power Management
Key features
- Low input capacitance
- Low on-resistance
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP documentation available, manufactured in IATF16949-certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3401AS3#C5310948TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,210 | ₹7.65 · 2,210 in stock | View |
 | AO3403-HXY#C22366697HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 10 | ₹5.50 · 10 in stock | View |
 | AO3401A-HXY#C22367235HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 3,600 | ₹4.99 · 3,600 in stock | View |
 | HXY3401MI#C3033396HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 440 | ₹4.78 · 440 in stock | View |
 | AO3401-HXY#C4748723HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 3,160 | ₹4.60 · 3,160 in stock | View |
