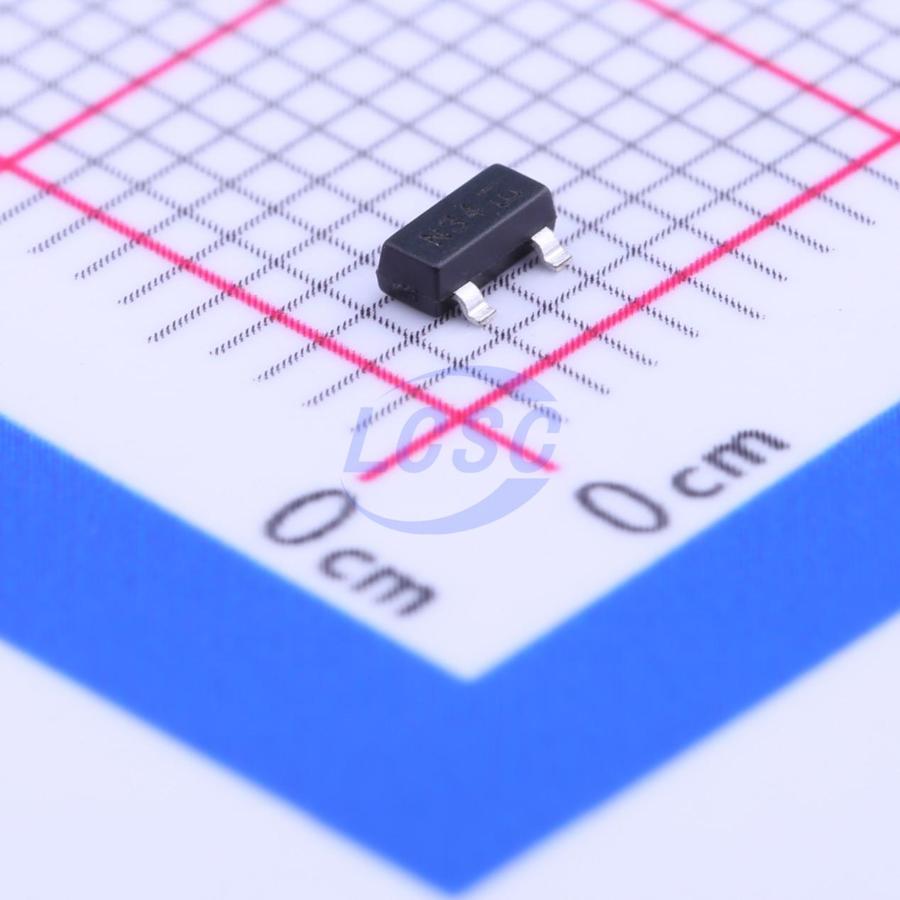

DMG3404L-7
N-Channel 30V 5.8A 1.33W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 5.8A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3404L-7
- Store part #
- C96615
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C96615
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.82 | ₹104.10 |
| 50+ | ₹15.81 | ₹790.50 |
| 150+ | ₹13.31 | ₹1,996.50 |
| 500+ | ₹11.43 | ₹5,715.00 |
| 3,000+ | ₹9.92 | ₹29,760.00 |
| 6,000+ | ₹9.17 | ₹55,020.00 |
5 × ₹20.82
₹104.10
excl. GST
₹122.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3404L-7
₹104.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 66pF
- Ciss-Input Capacitance
- 641pF
- Pd - Power Dissipation
- 1.33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.8A
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Battery Charging
- Power Management Functions
- DC-DC Converters
- Portable Power Adaptors
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3404T2#C41354922Siliup · SOT-23 | Siliup | SOT-23 | 2,960 | ₹5.85 · 2,960 in stock | View |
 | HSS3404A#C518794HUASHUO · SOT-23 | HUASHUO | SOT-23 | 2,960 | ₹5.33 · 2,960 in stock | View |
 | DMN3404LQ-7#C461021DIODES · SOT-23 | DIODES | SOT-23 | 3,000 | ₹59.34 · 3,000 in stock | View |
 | AOSS32334C#C3280157AOS · SOT-23-3 | AOS | SOT-23-3 | 5,120 | ₹16.42 · 5,120 in stock | View |
 | DMN3404L-7#C155257DIODES · SOT-23 | DIODES | SOT-23 | 9,710 | ₹32.77 · 9,710 in stock | View |
