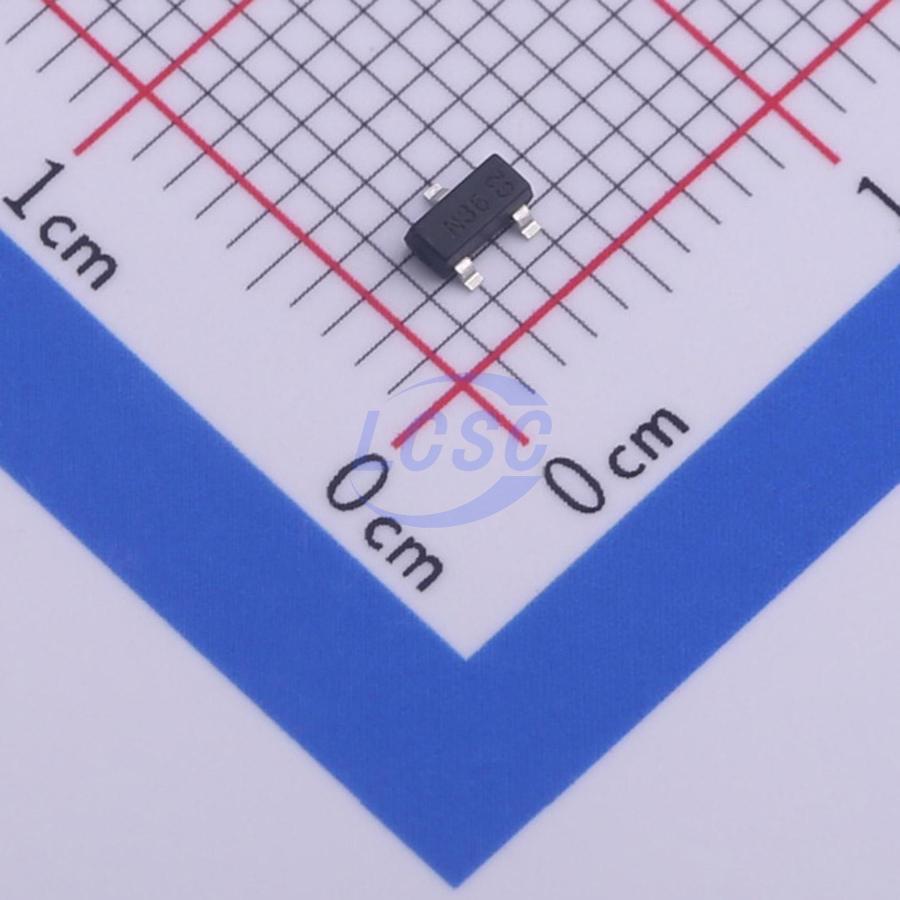

DMG3406L-7
N-Channel 30V 2.8A 0.77W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 2.8A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3406L-7
- Store part #
- C460978
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,515 in stock
#C460978
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.98 | ₹134.90 |
| 50+ | ₹22.04 | ₹1,102.00 |
| 150+ | ₹19.92 | ₹2,988.00 |
| 500+ | ₹17.29 | ₹8,645.00 |
| 3,000+ | ₹16.11 | ₹48,330.00 |
| 6,000+ | ₹15.41 | ₹92,460.00 |
5 × ₹26.98
₹134.90
excl. GST
₹159.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3406L-7
₹134.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 495pF
- Pd - Power Dissipation
- 770mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 2.8A
- Reverse Transfer Capacitance (Crss)
- 43pF
- RDS(on)
- 70mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Battery Charging
- Power Management Functions
- DC-DC Converters
- Portable Power Adaptors
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
