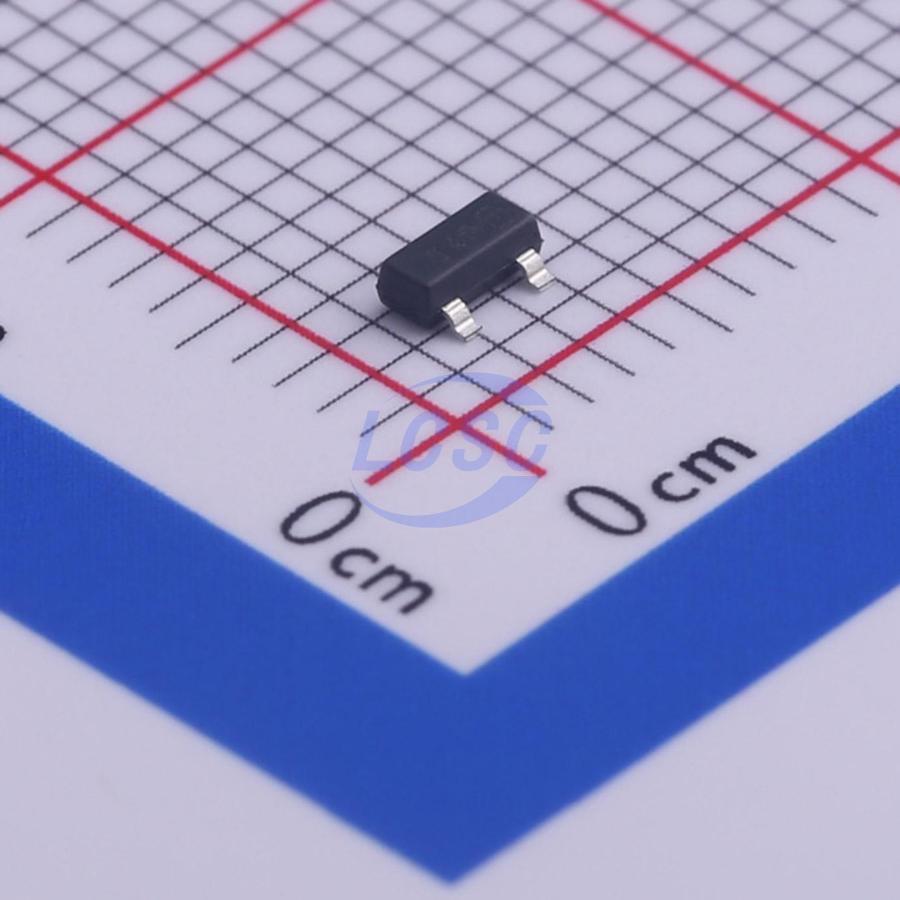

DMG3415UQ-7
P-Channel 20V 4.9A 900mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 4.9A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3415UQ-7
- Store part #
- C459537
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C459537
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.88 | ₹159.40 |
| 50+ | ₹25.31 | ₹1,265.50 |
| 150+ | ₹22.50 | ₹3,375.00 |
| 500+ | ₹18.99 | ₹9,495.00 |
| 3,000+ | ₹17.42 | ₹52,260.00 |
| 6,000+ | ₹16.48 | ₹98,880.00 |
5 × ₹31.88
₹159.40
excl. GST
₹188.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3415UQ-7
₹159.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 104pF
- Current - Continuous Drain(Id)
- 4.9A
- Ciss-Input Capacitance
- 294pF
- Pd - Power Dissipation
- 900mW
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 31mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 9.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 550mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
This next-generation MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converter - Power Management Function
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 3kV
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XR3415E#C42456912XNRUSEMI · SOT-23 | XNRUSEMI | SOT-23 | 2,200 | ₹4.35 · 2,200 in stock | View |
 | SP3415LKT2#C41354811Siliup · SOT-23 | Siliup | SOT-23 | 400 | ₹2.09 · 400 in stock | View |
 | XR3415L#C53454468XNRUSEMI · SOT-23-3L | XNRUSEMI | SOT-23-3L | 2,690 | ₹6.17 · 2,690 in stock | View |
 | DO3401A#C54349769DOINGTER · SOT-23 | DOINGTER | SOT-23 | 2,160 | ₹5.00 · 2,160 in stock | View |
 | AO3415#C54863559SEP · SOT-23 | SEP | SOT-23 | 2,940 | ₹5.27 · 2,940 in stock | View |
