DIODESDatasheet (PDF)

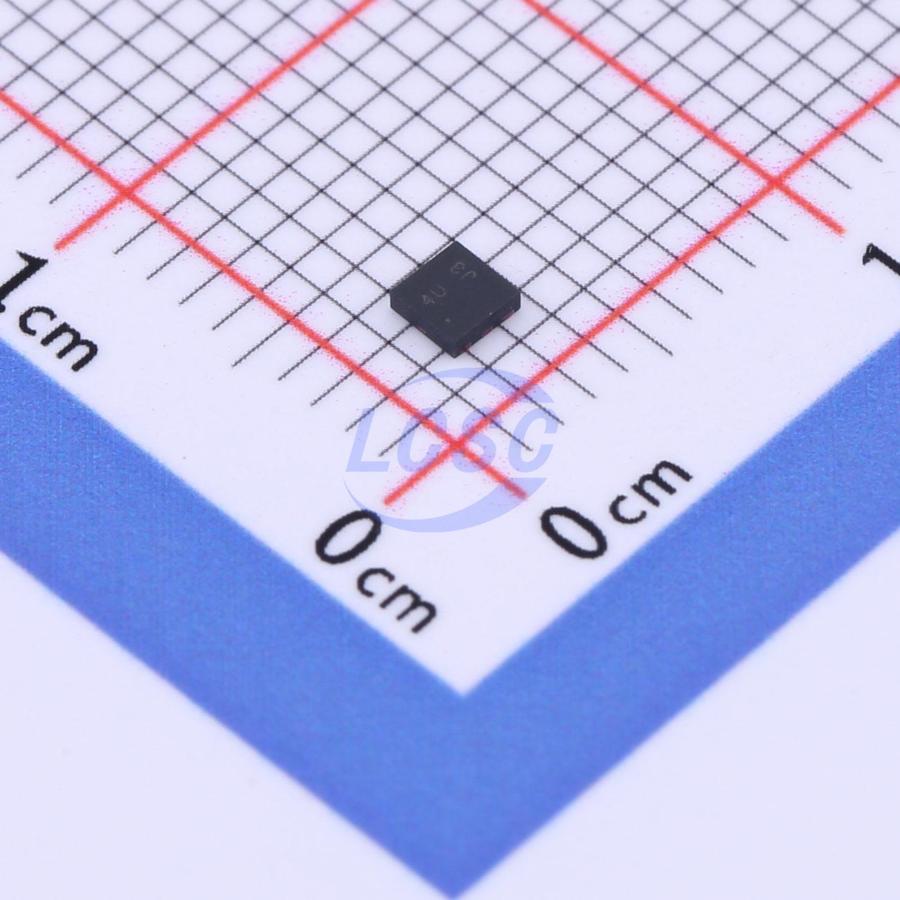

DMN1004UFDF-7
N-Channel 12V 15A 2.1W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET N-CH 12V 15A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1004UFDF-7
- Store part #
- C3001621
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,341 in stock
#C3001621
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.35 | ₹67.35 |
| 10+ | ₹52.80 | ₹528.00 |
| 30+ | ₹46.50 | ₹1,395.00 |
| 100+ | ₹38.68 | ₹3,868.00 |
| 500+ | ₹35.21 | ₹17,605.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹67.35
₹67.35
excl. GST
₹79.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN1004UFDF-7
₹67.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 678pF
- Ciss-Input Capacitance
- 2.385nF
- Pd - Power Dissipation
- 2.1W
- Drain to Source Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 520pF
- RDS(on)
- 7mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
Key features
- 0.6mm Profile – Ideal for Low-Profile Applications
- PCB Footprint of 4mm2
- Low Gate Threshold Voltage
- Low On-Resistance
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3020UFDF-7#C5125763DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 1,189 | ₹74.38 · 1,189 in stock | View |
 | LWN2007AD2#C54221205Lewa Micro · DFN-6L(2x2) | Lewa Micro | DFN-6L(2x2) | 1,835 | ₹16.59 · 1,835 in stock | View |
 | HSCB2016#C2828493HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 195 | ₹12.49 · 195 in stock | View |
 | NP2016DR-N-G#C2991144NATLINEAR · DFN-6L-B(2x2) | NATLINEAR | DFN-6L-B(2x2) | 5,390 | ₹11.66 · 5,390 in stock | View |
 | NTLJS5D0N03CTAG#C894014onsemi · WDFN-6(2x2) | onsemi | WDFN-6(2x2) | 25 | ₹105.01 · 25 in stock | View |
