DIODESDatasheet (PDF)

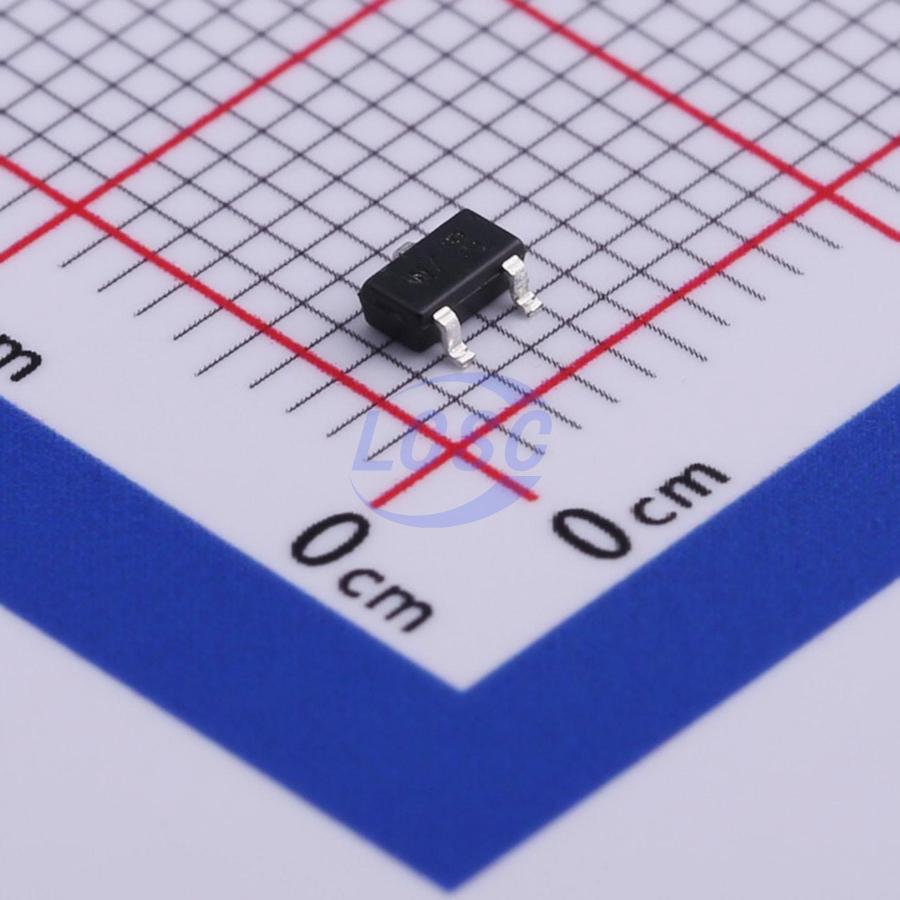

DMN1019USN-13
680mW 12V 9.3A 10mΩ@4.5V 1 N-channel N-Channel SC-59 Single FETs, MOSFETs RoHS
SC-59ROHS3 CompliantActive
MOSFET N-CH 12V 9.3A SC-59
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1019USN-13
- Store part #
- C507832
- Package / case
- SC-59
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
440 in stock
#C507832
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.54 | ₹92.70 |
| 50+ | ₹18.13 | ₹906.50 |
| 150+ | ₹17.86 | ₹2,679.00 |
| 500+ | ₹17.60 | ₹8,800.00 |
5 × ₹18.54
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN1019USN-13
₹92.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 396pF
- Ciss-Input Capacitance
- 2.426nF
- Pd - Power Dissipation
- 680mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 9.3A
- Reverse Transfer Capacitance (Crss)
- 375pF
- RDS(on)
- 10mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50.6nC@8V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
- DC-DC Converters
- Power Management Functions
Key features
- Low On-Resistance
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN1019USN-7#C145103DIODES · SC-59 | DIODES | SC-59 | 9,100 | ₹34.44 · 9,100 in stock | View |
 | ASDM20N12ZB-R#C2758218ASDsemi · SOT-23-3 | ASDsemi | SOT-23-3 | 2,950 | ₹10.98 · 2,950 in stock | View |
 | CMN3050M#C55185724Cmos · SOT-23-3L | Cmos | SOT-23-3L | 80 | ₹12.13 · 80 in stock | View |
 | TM10N02MI#C7422808Tritech-MOS · SOT-23-3L | Tritech-MOS | SOT-23-3L | 3,000 | ₹7.73 · 3,000 in stock | View |
 | AO3011A#C49046454JSMSEMI · SOT-23-3L | JSMSEMI | SOT-23-3L | 2,540 | ₹8.81 · 2,540 in stock | View |
