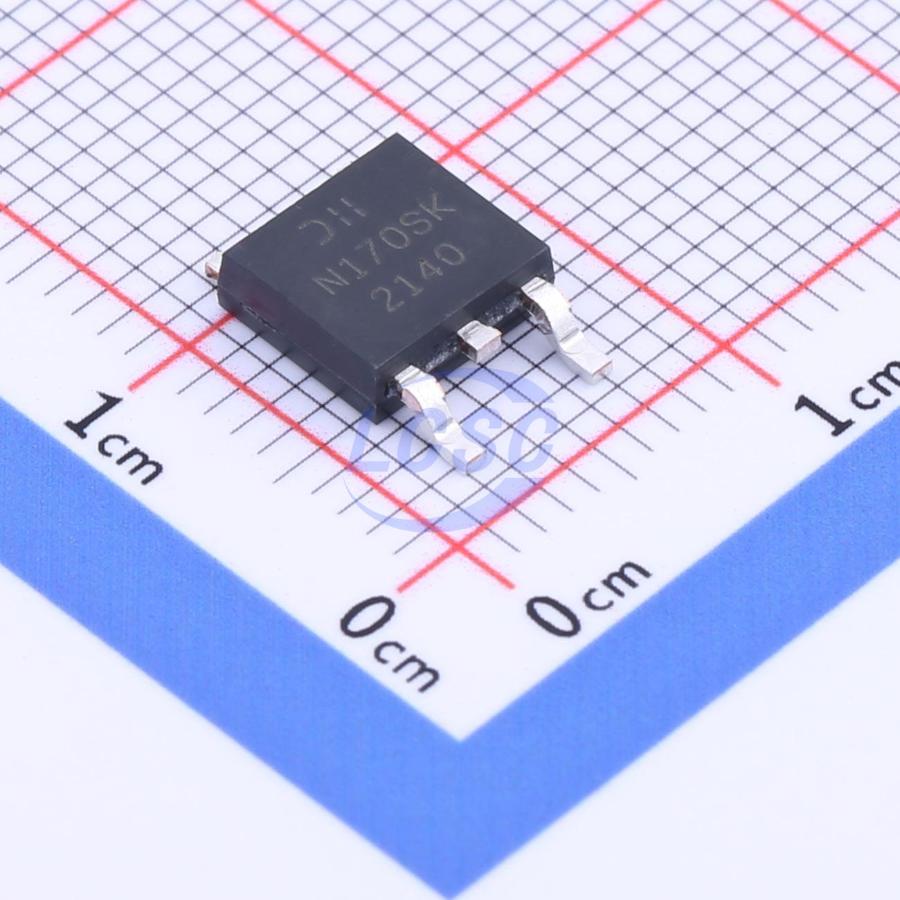

DMN10H170SK3-13
N-Channel 100V 12A 42W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS CompliantActive
MOSFET N-CH 100V 12A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMN10H170SK3-13
- Store part #
- C156269
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,095 in stock
#C156269
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.92 | ₹189.60 |
| 50+ | ₹30.11 | ₹1,505.50 |
| 150+ | ₹26.75 | ₹4,012.50 |
| 500+ | ₹22.58 | ₹11,290.00 |
| 2,500+ | ₹20.72 | ₹51,800.00 |
| 5,000+ | ₹19.61 | ₹98,050.00 |
5 × ₹37.92
₹189.60
excl. GST
₹223.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN10H170SK3-13
₹189.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 36pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.167nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 160mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.534 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Low Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSU15N10#C22359252HUASHUO · TO-252 | HUASHUO | TO-252 | 65 | ₹23.56 · 65 in stock | View |
 | HSU0004#C508794HUASHUO · TO-252 | HUASHUO | TO-252 | 20 | ₹19.53 · 20 in stock | View |
 | FTD150N10N#C18906005CRMICRO · TO-252 | CRMICRO | TO-252 | 110 | ₹21.35 · 110 in stock | View |
 | HD1H15A(AEE)#C2688960HL(Haolin Elec) · TO-252-2 | HL(Haolin Elec) | TO-252-2 | 25 | ₹12.58 · 25 in stock | View |
 | 40N10#C49023428GOODWORK · TO-252 | GOODWORK | TO-252 | 795 | ₹28.83 · 795 in stock | View |
