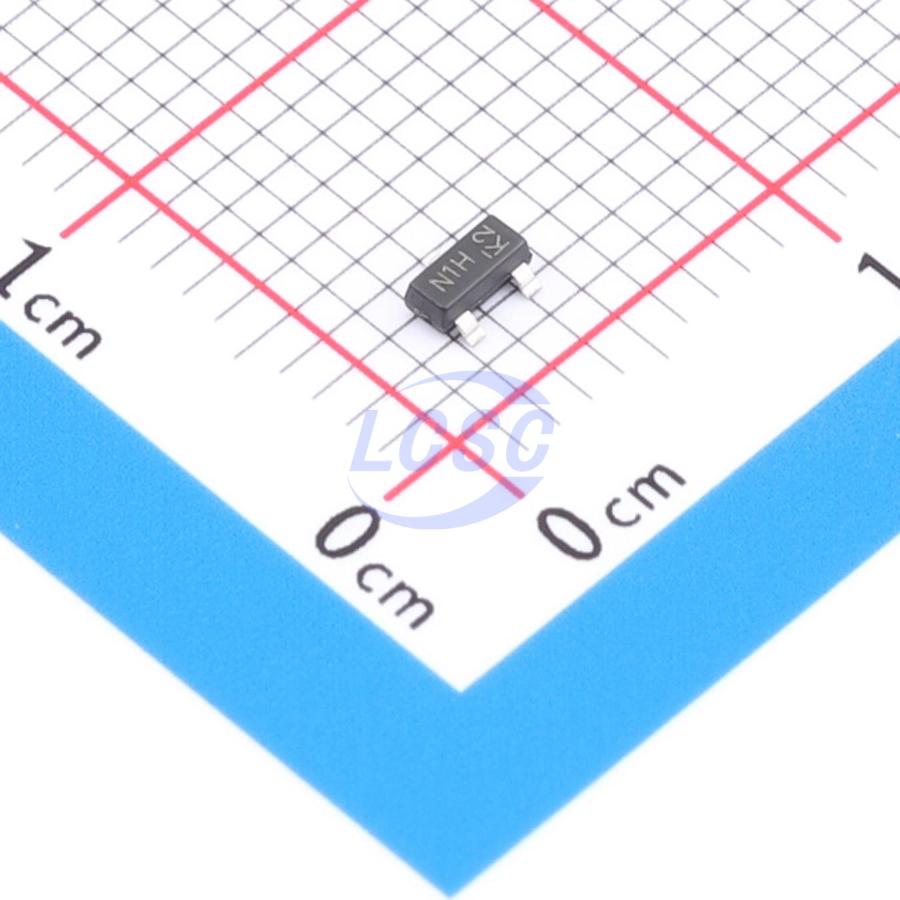

DMN10H220L-13
N-Channel 100V 1.6A 1.3W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 100V 1.6A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN10H220L-13
- Store part #
- C6540210
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C6540210
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.40 | ₹129.40 |
| 10+ | ₹127.47 | ₹1,274.70 |
| 30+ | ₹126.39 | ₹3,791.70 |
| 100+ | ₹125.10 | ₹12,510.00 |
1 × ₹129.40
₹129.40
excl. GST
₹152.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN10H220L-13
₹129.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 1.6A
- Ciss-Input Capacitance
- 401pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 220mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- Load switches
Key features
- Low On-Resistance
- Low Input Capacitance Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VB1102M#C480919VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 145 | ₹39.04 · 145 in stock | View |
 | DMN10H220L-7#C102615DIODES · SOT-23 | DIODES | SOT-23 | 17,140 | ₹48.30 · 17,140 in stock | View |
 | FDN86246#C7421706JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 4,365 | ₹27.06 · 4,365 in stock | View |
 | CMN2328AM#C5203894Cmos · SOT-23-3L | Cmos | SOT-23-3L | 200 | ₹12.73 · 200 in stock | View |
| SP2N10T2#C41354912Siliup · SOT-23 | Siliup | SOT-23 | 3,000 | ₹8.31 · 3,000 in stock | View | |
