DIODESDatasheet (PDF)

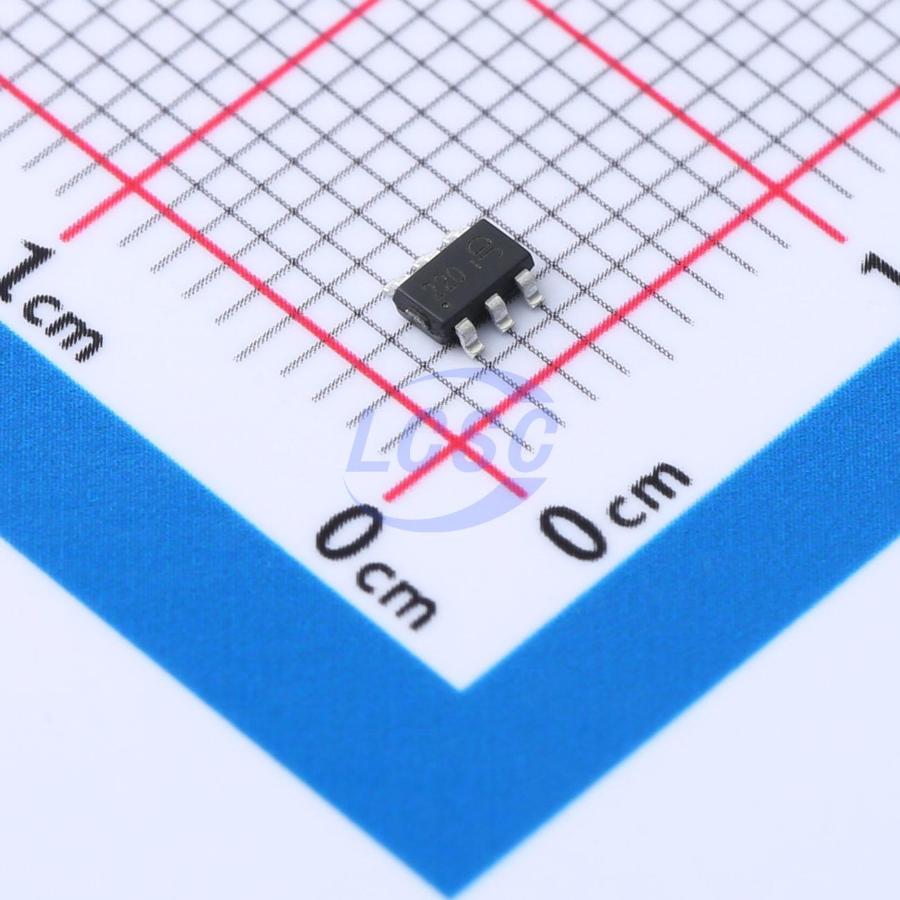

DMN10H220LVT-7
N-Channel 100V 2.24A 1.67W Surface Mount TSOT-23
TSOT-23ROHS3 CompliantActive
MOSFET N-CH 100V 2.24A TSOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN10H220LVT-7
- Store part #
- C3291372
- Package / case
- TSOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,844 in stock
#C3291372
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.43 | ₹40.43 |
| 10+ | ₹35.68 | ₹356.80 |
| 30+ | ₹33.63 | ₹1,008.90 |
| 100+ | ₹31.14 | ₹3,114.00 |
| 500+ | ₹29.91 | ₹14,955.00 |
| 1,000+ | ₹29.29 | ₹29,290.00 |
1 × ₹40.43
₹40.43
excl. GST
₹47.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN10H220LVT-7
₹40.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 22pF
- Current - Continuous Drain(Id)
- 2.24A
- Ciss-Input Capacitance
- 401pF
- Pd - Power Dissipation
- 1.67W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 172mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converter - Power Management - Backlight
Key features
- Low input capacitance
- Low on-resistance
- Fast switching speed
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SP2N10T2#C41354912Siliup · SOT-23 | Siliup | SOT-23 | 3,000 | ₹8.31 · 3,000 in stock | View | |
 | TPM1004NS6#C5371020TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,020 | ₹16.55 · 2,020 in stock | View |
 | PTL03N10#C32989179HT(Shenzhen Jinyu Semicon) · SOT-23 | HT(Shenzhen Jinyu Semicon) | SOT-23 | 4,150 | ₹8.76 · 4,150 in stock | View |
 | XCH3N10#C53155320XCH · SOT-23-3L | XCH | SOT-23-3L | 2,885 | ₹10.81 · 2,885 in stock | View |
 | PJM10H03NSC#C2891566PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 2,540 | ₹8.52 · 2,540 in stock | View |
