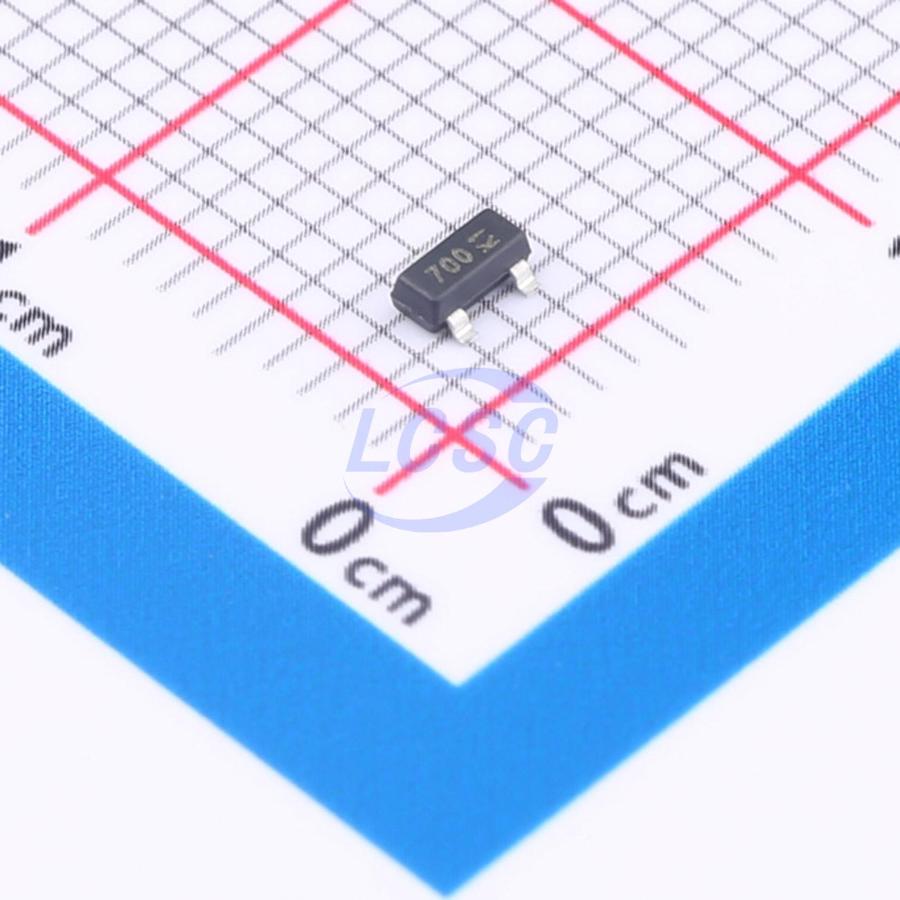

DMN10H700S-7
N-Channel 100V 0.7A 0.5W Surface Mount SOT-23
SOT-23ROHS CompliantSold out at source
MOSFET N-CH 100V 0.7A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN10H700S-7
- Store part #
- C3280130
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3280130
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹15.00 | ₹750.00 |
| 150+ | ₹13.14 | ₹1,971.00 |
| 500+ | ₹11.72 | ₹5,860.00 |
| 3,000+ | ₹10.61 | ₹31,830.00 |
| 6,000+ | ₹10.04 | ₹60,240.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN10H700S-7
₹93.75 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 700mA
- Ciss-Input Capacitance
- 235pF
- Pd - Power Dissipation
- 500mW
- RDS(on)
- 900mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
Key features
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN13H750S-7#C156273DIODES · SOT-23 | DIODES | SOT-23 | 3,238 | ₹137.06 · 3,238 in stock | View |
 | SI2328DS-T1-GE3#C467896VISHAY · SOT-23 | VISHAY | SOT-23 | 10 | ₹339.76 · 10 in stock | View |
 | SI2328DS-T1-E3#C14519VISHAY · SOT-23 | VISHAY | SOT-23 | 3,737 | ₹176.34 · 3,737 in stock | View |
 | ZXMN10A07FTA#C140566DIODES · SOT-23 | DIODES | SOT-23 | 6,220 | ₹33.55 · 6,220 in stock | View |
 | CMN1N40M#C52118377Cmos · SOT-23-3L | Cmos | SOT-23-3L | 3,685 | ₹12.81 · 3,685 in stock | View |
