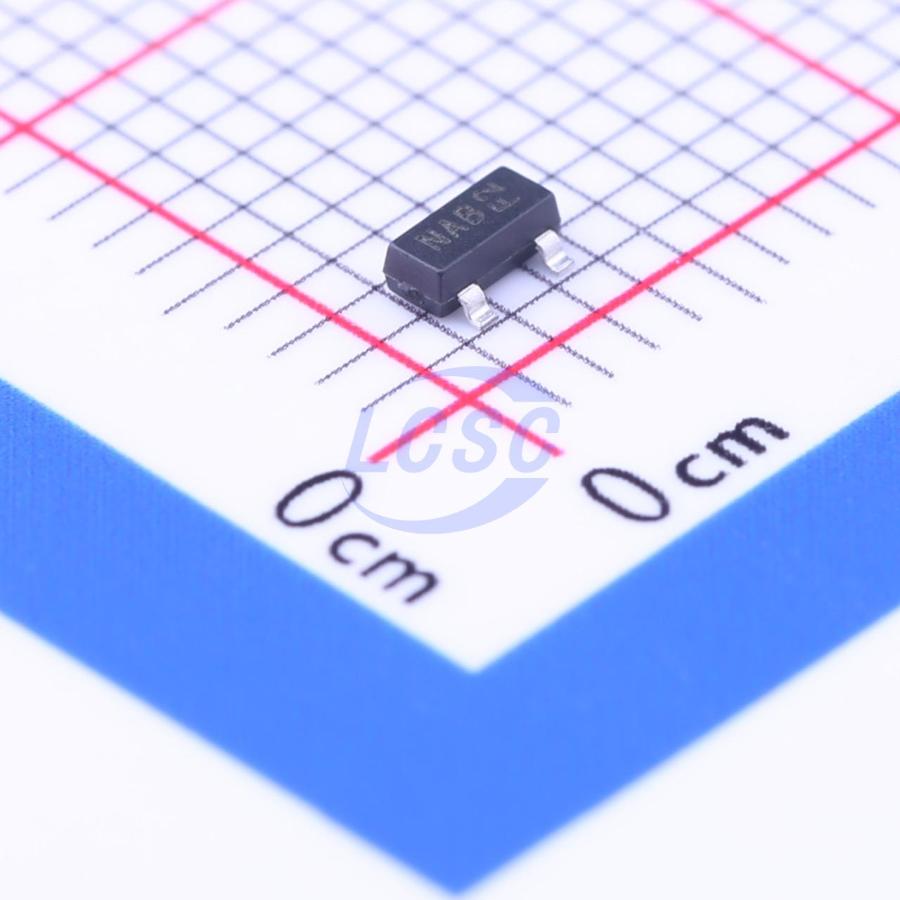

DMN2004K-7
N-Channel 20V 630mA 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 630mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2004K-7
- Store part #
- C75285
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C75285
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.56 | ₹66.56 |
| 10+ | ₹51.77 | ₹517.70 |
| 30+ | ₹45.25 | ₹1,357.50 |
| 100+ | ₹37.20 | ₹3,720.00 |
| 500+ | ₹33.72 | ₹16,860.00 |
| 1,000+ | ₹31.54 | ₹31,540.00 |
1 × ₹66.56
₹66.56
excl. GST
₹78.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2004K-7
₹66.56 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 630mA
- Ciss-Input Capacitance
- 150pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 400mΩ@4.5V;700mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 900pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converter - Power Management Function
Key features
- Low on-resistance: RDS(on) = 550 mΩ (max) at VGS = 4.5 V
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 2 kV
- Fully lead-free, fully RoHS compliant
- Halogen-free and antimony-free "green" device
- JEDEC-qualified (ref. AEC-Q) with high reliability
