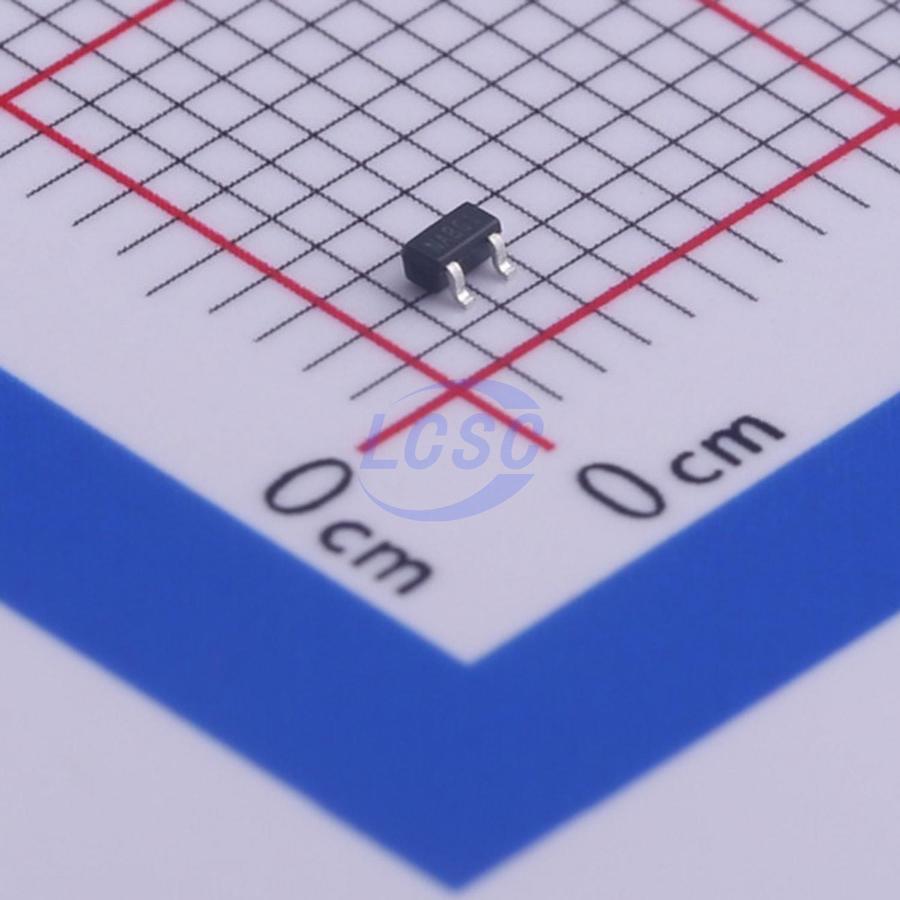

DMN2004TK-7
N-Channel 20V 540mA 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET N-CH 20V 540mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2004TK-7
- Store part #
- C460991
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,530 in stock
#C460991
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.94 | ₹159.70 |
| 50+ | ₹26.41 | ₹1,320.50 |
| 150+ | ₹24.04 | ₹3,606.00 |
| 500+ | ₹21.09 | ₹10,545.00 |
| 3,000+ | ₹19.77 | ₹59,310.00 |
| 6,000+ | ₹18.99 | ₹1,13,940.00 |
5 × ₹31.94
₹159.70
excl. GST
₹188.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2004TK-7
₹159.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 150pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 540mA
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 700mΩ@1.8V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD Protected up to 2kV
- Lead Free By Design/RoHS Compliant
- "Green" Device Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2002KT5#C41354897Siliup · SOT-523 | Siliup | SOT-523 | 4,450 | ₹2.16 · 4,450 in stock | View |
 | DMN2004TK-TP#C51939543TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,920 | ₹5.09 · 2,920 in stock | View |
 | CJE3134K#C504104JSCJ · SOT-523 | JSCJ | SOT-523 | 2,72,260 | ₹3.57 · 2,72,260 in stock | View |
 | SL2302T#C22392335Slkor · SOT-523 | Slkor | SOT-523 | 2,780 | ₹4.26 · 2,780 in stock | View |
 | SE2102E#C5116037SINO-IC · SOT-523 | SINO-IC | SOT-523 | 3,380 | ₹4.86 · 3,380 in stock | View |
