DIODESDatasheet (PDF)

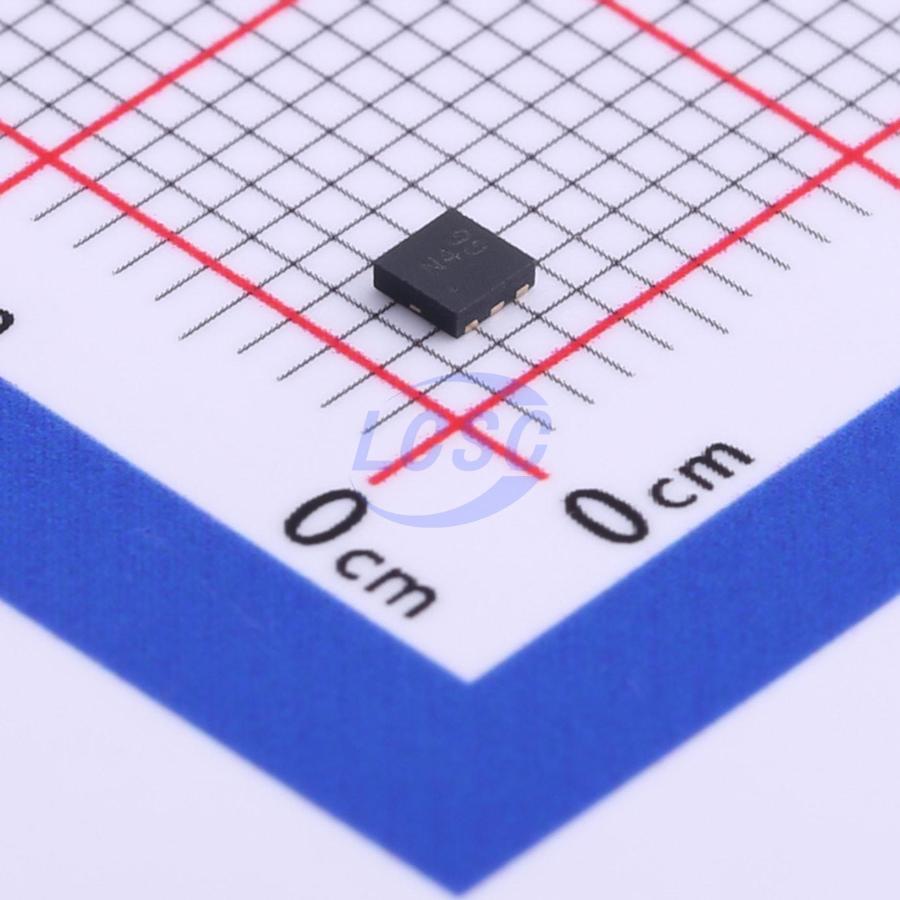

DMN2015UFDE-7
660mW 20V 10.5A 11.5mΩ@4.5V 1 N-channel N-Channel UDFN2020-6-EP Single FETs, MOSFETs RoHS
UDFN2020-6-EPROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2015UFDE-7
- Store part #
- C581339
- Package / case
- UDFN2020-6-EP
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C581339
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.56 | ₹107.80 |
| 50+ | ₹17.07 | ₹853.50 |
| 150+ | ₹15.15 | ₹2,272.50 |
| 500+ | ₹12.74 | ₹6,370.00 |
| 3,000+ | ₹10.09 | ₹30,270.00 |
| 6,000+ | ₹9.45 | ₹56,700.00 |
5 × ₹21.56
₹107.80
excl. GST
₹127.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2015UFDE-7
₹107.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 175pF
- Ciss-Input Capacitance
- 1.779nF
- Pd - Power Dissipation
- 660mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 10.5A
- Reverse Transfer Capacitance (Crss)
- 154pF
- RDS(on)
- 11.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.7nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This next-generation MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management function
Key features
- 0.6mm thickness — suitable for thin applications
- 4mm² PCB footprint
- Low gate threshold voltage
- Low on-resistance
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM1019ND6-1#C7472898TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 2,965 | ₹19.59 · 2,965 in stock | View |
 | WNM3056-6/TR#C2941866WILLSEMI · DFN2x2-6L | WILLSEMI | DFN2x2-6L | 1,590 | ₹28.64 · 1,590 in stock | View |
 | LN2324DT2AG#C172432LRC · DFN-6L(2x2) | LRC | DFN-6L(2x2) | 4,820 | ₹35.24 · 4,820 in stock | View |
 | WSD2018ADN22#C2880469Winsok Semicon · DFNWB-6-EP(2x2) | Winsok Semicon | DFNWB-6-EP(2x2) | 3,000 | ₹26.91 · 3,000 in stock | View |
 | TPM1019ND6#C7472897TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 1,190 | ₹25.77 · 1,190 in stock | View |
