DIODESDatasheet (PDF)

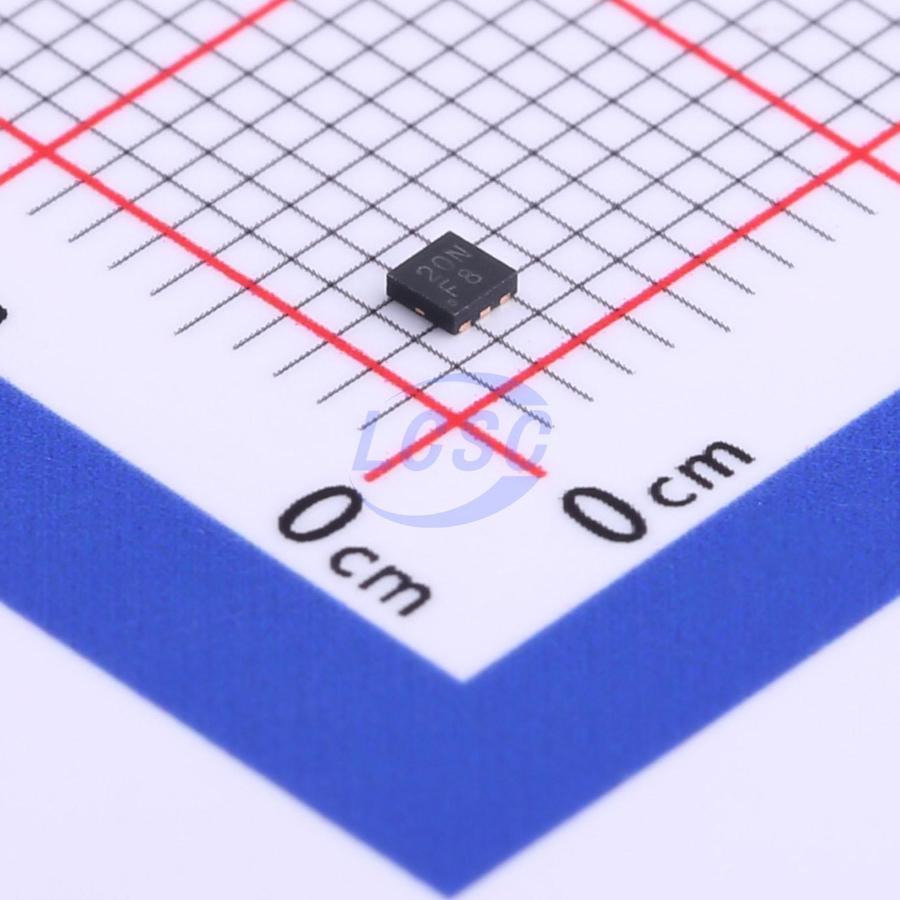

DMN2020UFCL-7
N-Channel 20V 9A 2W Surface Mount X1-DFN1616-6
X1-DFN1616-6ROHS3 CompliantActive
MOSFET N-CH 20V 9A X1-DFN1616-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2020UFCL-7
- Store part #
- C705312
- Package / case
- X1-DFN1616-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C705312
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.80 | ₹69.00 |
| 50+ | ₹13.49 | ₹674.50 |
| 150+ | ₹13.31 | ₹1,996.50 |
| 500+ | ₹13.10 | ₹6,550.00 |
5 × ₹13.80
₹69.00
excl. GST
₹81.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2020UFCL-7
₹69.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 162pF
- Ciss-Input Capacitance
- 1.788nF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 10mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21.5nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power management functions
- Load Switch
Key features
- Typical off board profile of 0.5mm - ideally suited for thin applications
- Low RDS(ON) – minimizes conduction losses
- PCB footprint of 2.56mm²
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NTLUS4C16NTAG#C894030onsemi · UDFN-6(1.6x1.6) | onsemi | UDFN-6(1.6x1.6) | On request | ₹24.70 · 0 in stock | View | |
| NTLUS4C16NTBG#C894031onsemi · UDFN-6(1.6x1.6) | onsemi | UDFN-6(1.6x1.6) | On request | ₹56.25 · 0 in stock | View | |
| NTLUS020N03CTAG#C894020onsemi · UDFN-6(1.6x1.6) | onsemi | UDFN-6(1.6x1.6) | On request | ₹112.04 · 0 in stock | View | |
