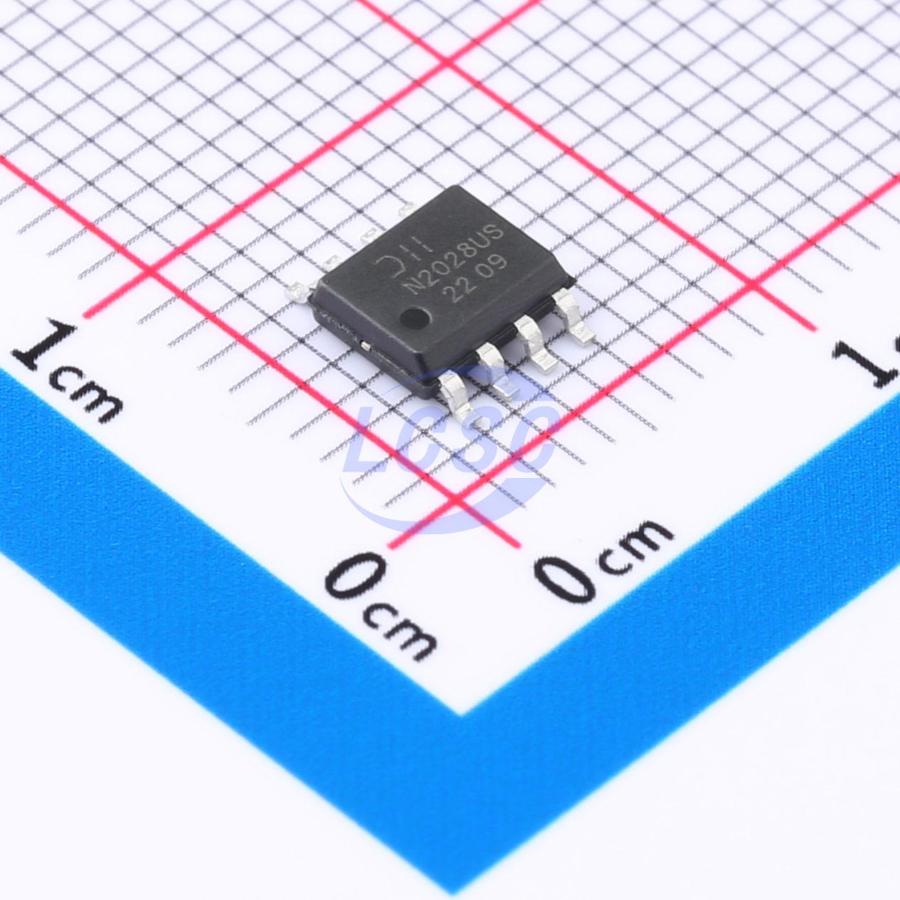

DMN2028USS-13
N-Channel 20V 9.8A 12.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 20V 9.8A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2028USS-13
- Store part #
- C5157769
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
239 in stock
#C5157769
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.61 | ₹72.61 |
| 10+ | ₹58.44 | ₹584.40 |
| 30+ | ₹51.24 | ₹1,537.20 |
| 100+ | ₹44.27 | ₹4,427.00 |
| 500+ | ₹40.11 | ₹20,055.00 |
| 1,000+ | ₹37.94 | ₹37,940.00 |
1 × ₹72.61
₹72.61
excl. GST
₹85.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN2028USS-13
₹72.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 166pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 12.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 9.8A
- Reverse Transfer Capacitance (Crss)
- 158pF
- RDS(on)
- 20mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.6nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery charging
- Power management functions
- DC-DC converters
- Portable power adapters
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low output leakage
- ESD protection up to 2kV
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
- AEC-Q101 high reliability qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBA1311#C416225VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 80 | ₹45.60 · 80 in stock | View |
 | AO4430#C5224297ElecSuper · SOP8 | ElecSuper | SOP8 | 7,525 | ₹10.78 · 7,525 in stock | View |
 | AO4406#C5155212JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,490 | ₹18.89 · 4,490 in stock | View |
 | TM40N03S#C7570365Tritech-MOS · SOP-8 | Tritech-MOS | SOP-8 | 1,825 | ₹18.87 · 1,825 in stock | View |
 | SM4306PRL#C496590SPS · SOP-8 | SPS | SOP-8 | 20 | ₹21.12 · 20 in stock | View |
