DIODESDatasheet (PDF)

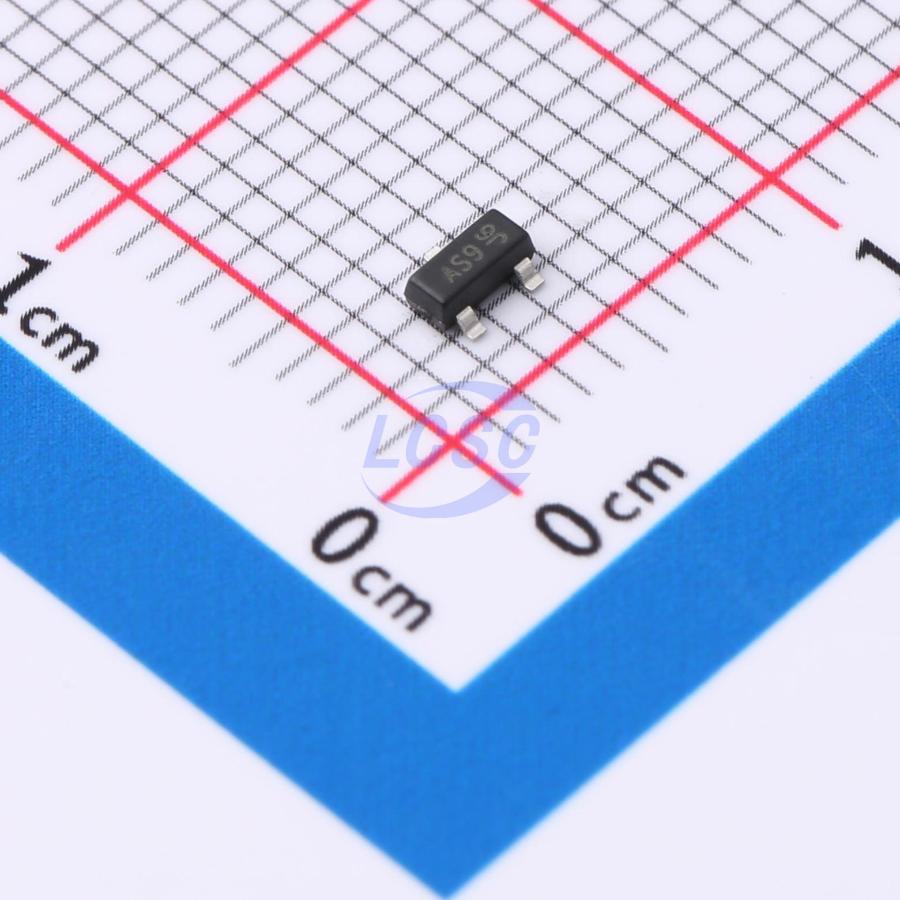

DMN2040U-13
N-Channel 20V 6A 1.36W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 6A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2040U-13
- Store part #
- C3280164
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
330 in stock
#C3280164
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.98 | ₹249.90 |
| 50+ | ₹39.57 | ₹1,978.50 |
| 150+ | ₹35.11 | ₹5,266.50 |
| 500+ | ₹29.54 | ₹14,770.00 |
| 2,500+ | ₹27.06 | ₹67,650.00 |
| 5,000+ | ₹25.57 | ₹1,27,850.00 |
5 × ₹49.98
₹249.90
excl. GST
₹294.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN2040U-13
₹249.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 91pF
- Ciss-Input Capacitance
- 667pF
- Pd - Power Dissipation
- 1.36W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 83pF
- RDS(on)
- 25mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.5nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PT3416#C2943998PUOLOP · SOT-23-3L | PUOLOP | SOT-23-3L | 1,580 | ₹9.25 · 1,580 in stock | View |
 | SP20N22T2#C41354901Siliup · SOT-23 | Siliup | SOT-23 | 11,900 | ₹3.36 · 11,900 in stock | View |
 | AO3416-L-TWGMC#C52117612TWGMC · SOT-23-3L | TWGMC | SOT-23-3L | 2,900 | ₹5.12 · 2,900 in stock | View |
 | AO3420-L-TWGMC#C52117613TWGMC · SOT-23-3 | TWGMC | SOT-23-3 | 2,940 | ₹5.89 · 2,940 in stock | View |
 | AO3416#C479060PUOLOP · SOT-23-3L | PUOLOP | SOT-23-3L | 8,060 | ₹5.93 · 8,060 in stock | View |
