DIODESDatasheet (PDF)

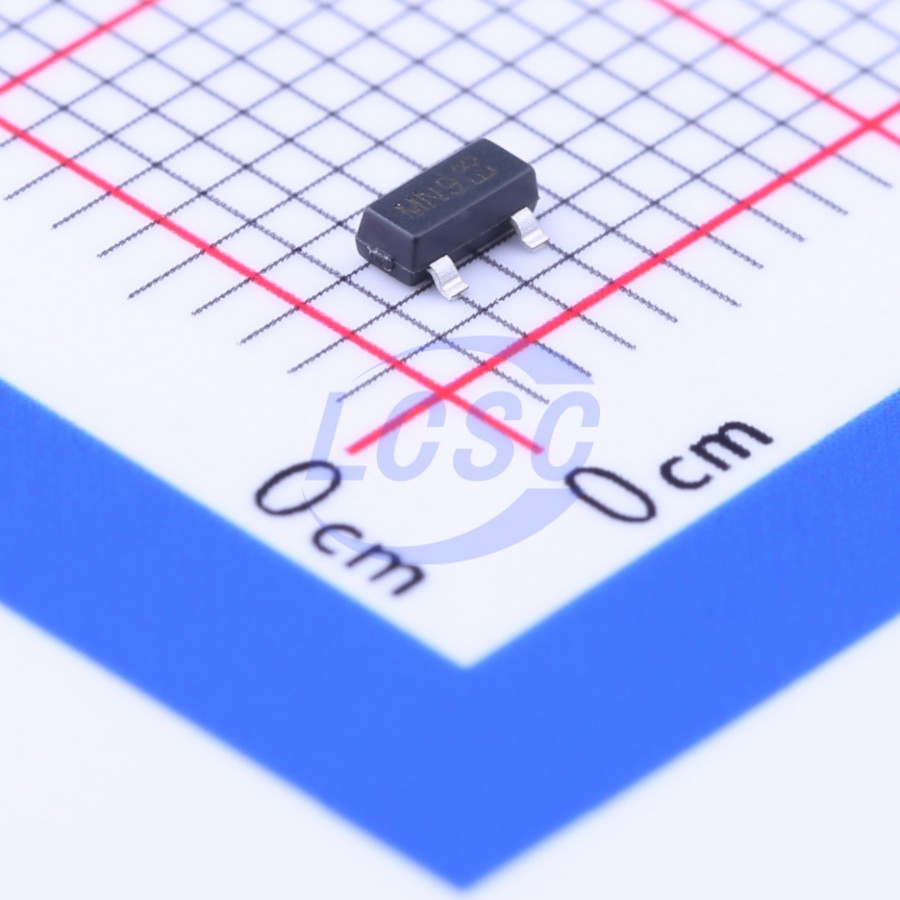

DMN2041L-7
20V 6.4A 780mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 6.4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2041L-7
- Store part #
- C154903
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C154903
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.01 | ₹65.05 |
| 50+ | ₹10.40 | ₹520.00 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.12 | ₹4,060.00 |
| 3,000+ | ₹7.34 | ₹22,020.00 |
| 6,000+ | ₹6.96 | ₹41,760.00 |
5 × ₹13.01
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2041L-7
₹65.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 88pF
- Current - Continuous Drain(Id)
- 6.4A
- Ciss-Input Capacitance
- 550pF
- Pd - Power Dissipation
- 780mW
- Reverse Transfer Capacitance (Crss)
- 81pF
- RDS(on)
- 20mΩ@4.5V;26mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified, high reliability
