DIODESDatasheet (PDF)

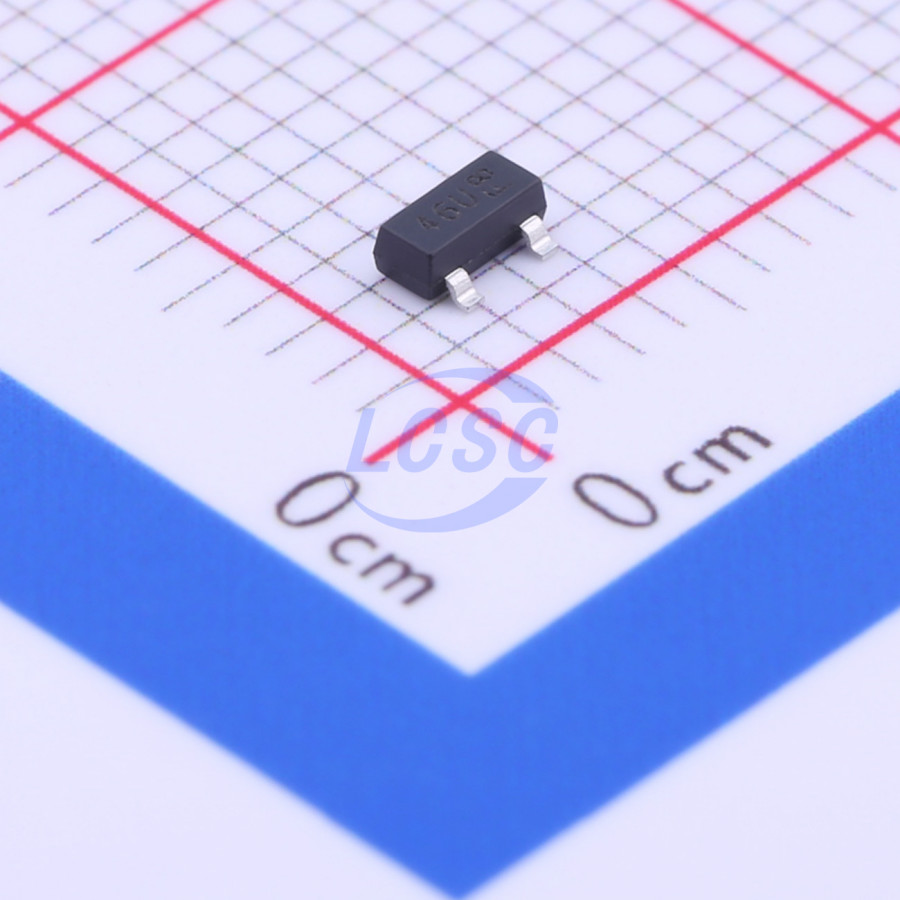

DMN2046U-7
N-Channel 20V 3.4A 1.26W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 3.4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2046U-7
- Store part #
- C332300
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
295 in stock
#C332300
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.42 | ₹172.10 |
| 50+ | ₹28.43 | ₹1,421.50 |
| 150+ | ₹25.88 | ₹3,882.00 |
| 500+ | ₹22.68 | ₹11,340.00 |
| 3,000+ | ₹21.25 | ₹63,750.00 |
| 6,000+ | ₹20.39 | ₹1,22,340.00 |
5 × ₹34.42
₹172.10
excl. GST
₹203.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2046U-7
₹172.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 36pF
- Ciss-Input Capacitance
- 292pF
- Pd - Power Dissipation
- 1.26W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.4A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 110mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This MOSFET is designed to minimize the on-state resistance (RoS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery Charging
- Power Management Functions
- DC-DC Converters
- Portable Power Adaptors
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD protected gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN2046U-13#C5451812DIODES · SOT-23 | DIODES | SOT-23 | 15 | ₹54.68 · 15 in stock | View |
 | SP2302T2#C41354906Siliup · SOT-23 | Siliup | SOT-23 | 3,000 | ₹4.10 · 3,000 in stock | View |
 | AP2316#C2842664ALLPOWER · SOT-23 | ALLPOWER | SOT-23 | 6,820 | ₹7.63 · 6,820 in stock | View |
 | SI2300#C332099PUOLOP · SOT-23 | PUOLOP | SOT-23 | 2,580 | ₹4.47 · 2,580 in stock | View |
 | AGM1005E#C49233848AGMSEMI · SOT-23 | AGMSEMI | SOT-23 | 30 | ₹9.96 · 30 in stock | View |
