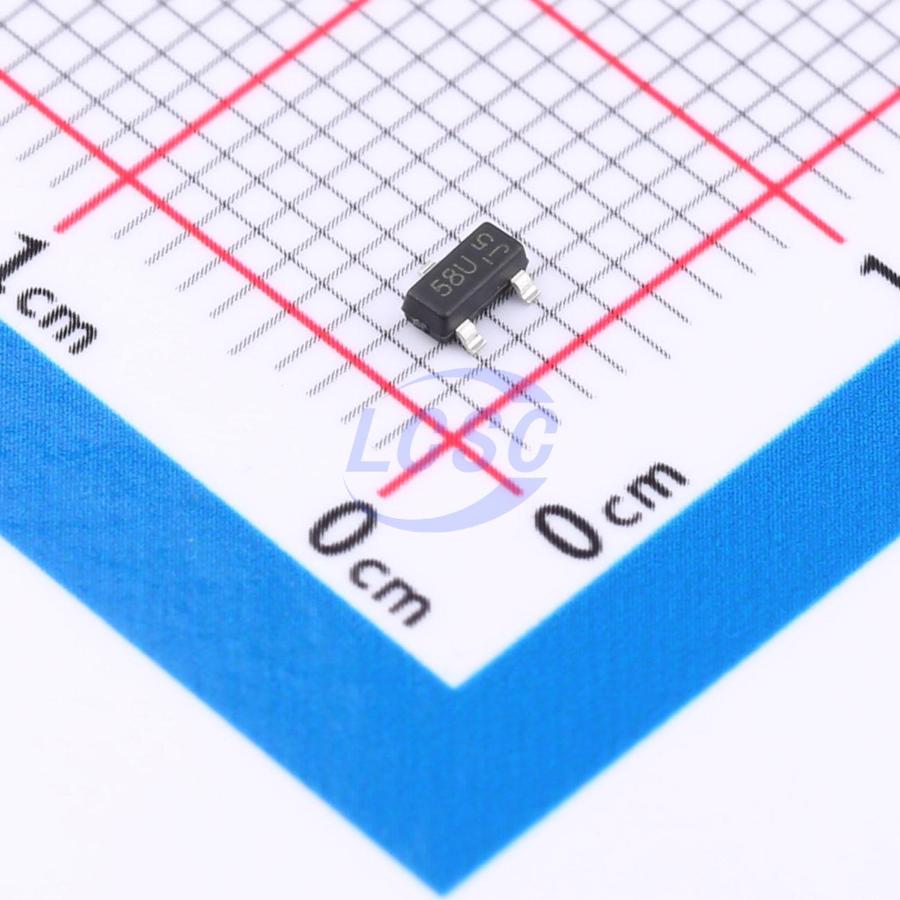

DMN2058U-13
N-Channel 20V 4.6A 0.74W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 4.6A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2058U-13
- Store part #
- C5245280
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
620 in stock
#C5245280
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.29 | ₹56.45 |
| 50+ | ₹11.05 | ₹552.50 |
| 150+ | ₹10.89 | ₹1,633.50 |
| 500+ | ₹10.73 | ₹5,365.00 |
5 × ₹11.29
₹56.45
excl. GST
₹66.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN2058U-13
₹56.45 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.6A
- Ciss-Input Capacitance
- 281pF
- Pd - Power Dissipation
- 740mW
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.7nC
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery Charging - Power Management Functions - DC-DC Converters - Portable Power Adapters
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN2058U-7#C461001DIODES · SOT-23 | DIODES | SOT-23 | 775 | ₹12.46 · 775 in stock | View |
 | DMN2053U-13#C5245277DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹13.01 · 5 in stock | View |
 | TM2300AI#C7422827Tritech-MOS · SOT-23 | Tritech-MOS | SOT-23 | 1,560 | ₹4.33 · 1,560 in stock | View |
 | FDN359BN#C19268139TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 660 | ₹6.24 · 660 in stock | View |
 | AO3404A#C7603369TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,270 | ₹6.42 · 6,270 in stock | View |
