DIODESDatasheet (PDF)

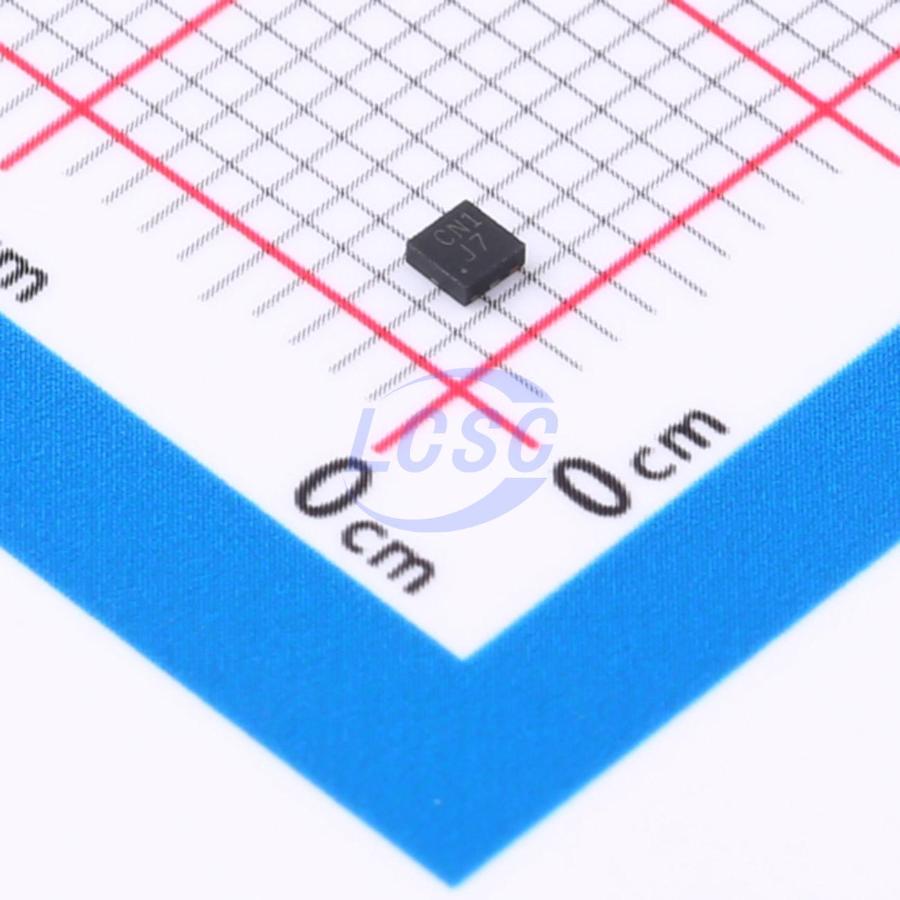

DMN2120UFCL-7
N-Channel 20V 1.8A 1.16W Surface Mount UDFN1616-6
UDFN1616-6ROHS3 CompliantActive
MOSFET N-CH 20V 1.8A UDFN1616-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2120UFCL-7
- Store part #
- C5245281
- Package / case
- UDFN1616-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C5245281
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.84 | ₹49.20 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹9.49 | ₹1,423.50 |
| 500+ | ₹9.35 | ₹4,675.00 |
5 × ₹9.84
₹49.20
excl. GST
₹58.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
DMN2120UFCL-7
₹49.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.8A
- Ciss-Input Capacitance
- 130pF
- Pd - Power Dissipation
- 1.16W
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 140mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.8nC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power Management Functions
- Load Switch
Key features
- Typical Off Board Profile of 0.6mmΩ- Ideally Suited for Thin Applications
- Low RDS(ON) – Minimizes Conduction Losses
- PCB Footprint of 2.56mm²
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT6030LFCL-7#C5711768DIODES · UDFN1616-6 | DIODES | UDFN1616-6 | 7 | ₹54.24 · 7 in stock | View |
 | FDMA430NZ-TP#C50314250TECH PUBLIC · DFN-6(1.6x1.6) | TECH PUBLIC | DFN-6(1.6x1.6) | 8,930 | ₹28.05 · 8,930 in stock | View |
 | AON1610-TP#C53340854TECH PUBLIC · DFN-6(1.6x1.6) | TECH PUBLIC | DFN-6(1.6x1.6) | 495 | ₹16.05 · 495 in stock | View |
 | AON1620-TP#C53340855TECH PUBLIC · DFN-6(1.6x1.6) | TECH PUBLIC | DFN-6(1.6x1.6) | 75 | ₹15.93 · 75 in stock | View |
 | DMN2020UFCL-TP#C53340870TECH PUBLIC · DFN-6(1.6x1.6) | TECH PUBLIC | DFN-6(1.6x1.6) | 500 | ₹16.05 · 500 in stock | View |
