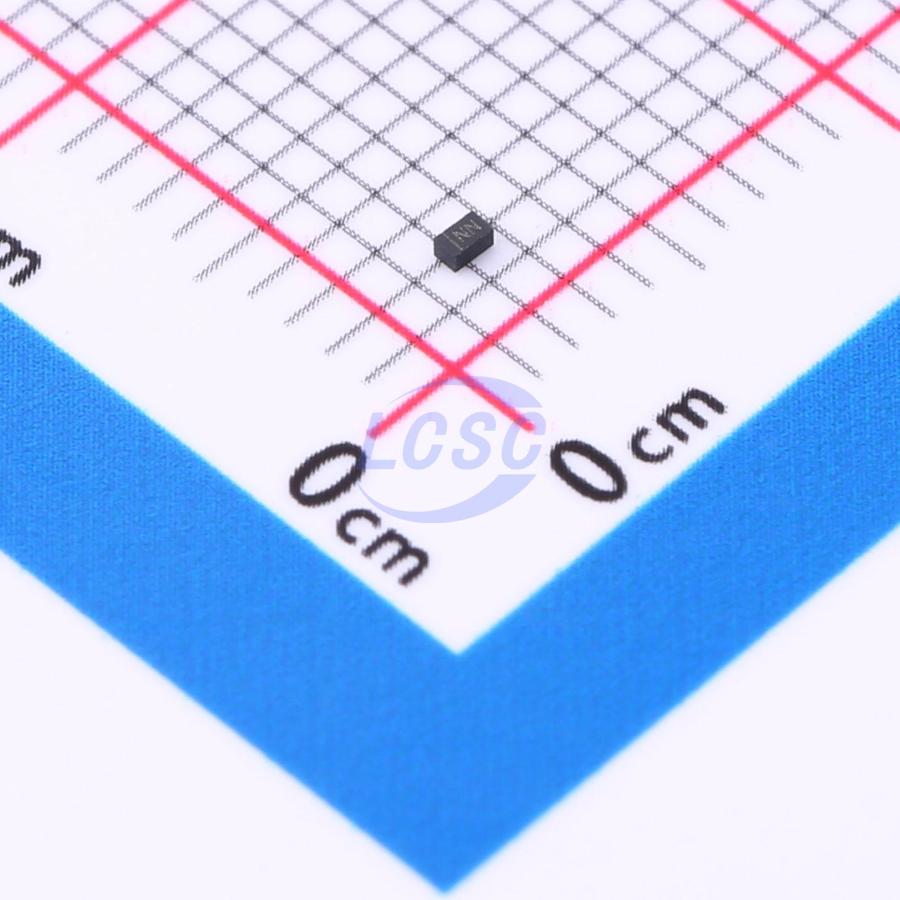

DMN21D2UFB-7B
N-Channel 20V 760mA 0.9W Surface Mount X1-DFN1006-3
X1-DFN1006-3ROHS3 CompliantActive
MOSFET N-CH 20V 760mA X1-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN21D2UFB-7B
- Store part #
- C155328
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C155328
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.79 | ₹68.95 |
| 50+ | ₹11.03 | ₹551.50 |
| 150+ | ₹9.66 | ₹1,449.00 |
| 500+ | ₹8.61 | ₹4,305.00 |
| 2,500+ | ₹7.79 | ₹19,475.00 |
| 5,000+ | ₹7.38 | ₹36,900.00 |
5 × ₹13.79
₹68.95
excl. GST
₹81.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN21D2UFB-7B
₹68.95 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 4pF
- Ciss-Input Capacitance
- 27.6pF
- Pd - Power Dissipation
- 900mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 760mA
- Reverse Transfer Capacitance (Crss)
- 2.8pF
- RDS(on)
- 3Ω@1.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 930pC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing Switch
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Very Low Gate Threshold Voltage, 1.0V Max
- Low Input Capacitance
- Fast Switching Speed
- Ultra-Small Surface Mount Package 1mm x 0.6mm
- Low Package Profile, 0.5mm Maximum Package Height
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM2008P3#C708974TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 13,260 | ₹4.02 · 13,260 in stock | View |
 | BRCS3134ZK#C22448983BLUE ROCKET · DFN1006-3L | BLUE ROCKET | DFN1006-3L | 6,760 | ₹3.69 · 6,760 in stock | View |
 | SI3134KL3A-TP#C3288245MCC · DFN1006-3 | MCC | DFN1006-3 | 6,190 | ₹10.49 · 6,190 in stock | View |
 | WNM2046E-3/TR#C2939849WILLSEMI · DFN1006-3L | WILLSEMI | DFN1006-3L | 7,360 | ₹5.91 · 7,360 in stock | View |
 | PMZ550UNEYL-CN#C42436708ChipNobo · DFN1006-3L | ChipNobo | DFN1006-3L | 720 | ₹5.17 · 720 in stock | View |
