DIODESDatasheet (PDF)

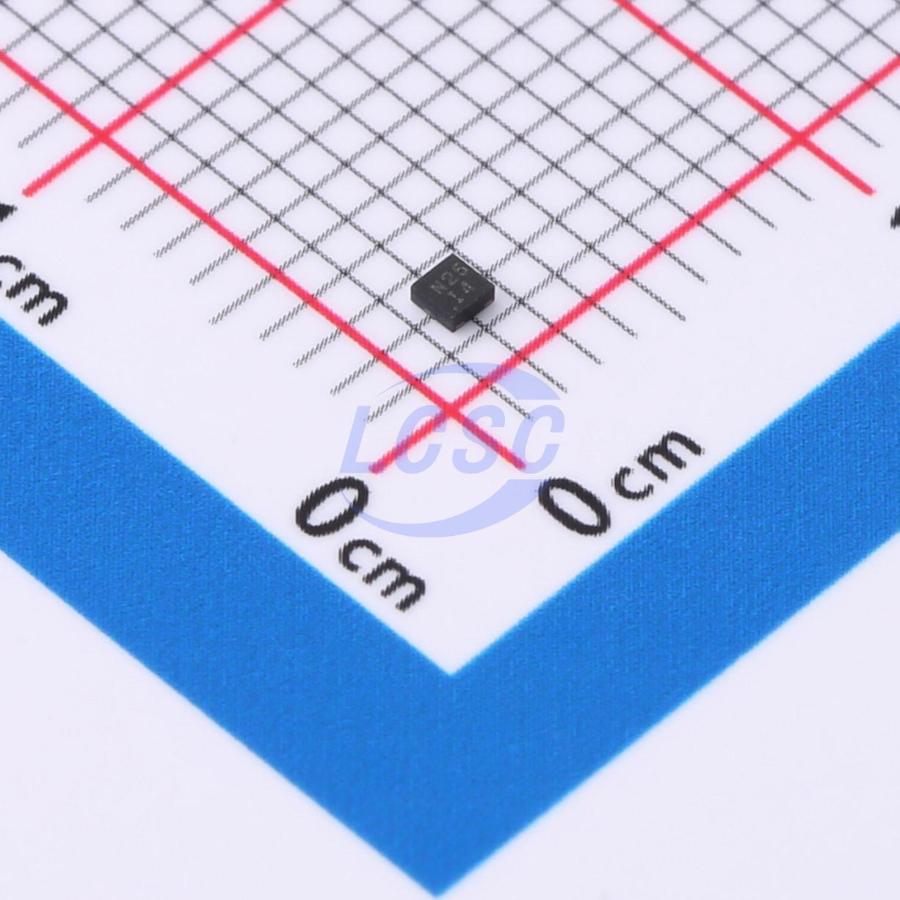

DMN2450UFD-7
N-Channel 20V 0.9A 0.45W Surface Mount X1-DFN1212-3
X1-DFN1212-3ROHS3 CompliantActive
MOSFET N-CH 20V 0.9A X1-DFN1212-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2450UFD-7
- Store part #
- C780830
- Package / case
- X1-DFN1212-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C780830
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.31 | ₹91.55 |
| 50+ | ₹15.36 | ₹768.00 |
| 150+ | ₹13.88 | ₹2,082.00 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 3,000+ | ₹11.52 | ₹34,560.00 |
| 6,000+ | ₹11.07 | ₹66,420.00 |
5 × ₹18.31
₹91.55
excl. GST
₹108.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2450UFD-7
₹91.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 4.8pF
- Ciss-Input Capacitance
- 52pF
- Pd - Power Dissipation
- 450mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 900mA
- Reverse Transfer Capacitance (Crss)
- 3.1pF
- RDS(on)
- 600mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 700pC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power Management Functions
- Battery Operated Systems and Solid-State Relays
- Load Switch
Key features
- Low On-Resistance
- Very Low Gate Threshold Voltage, 1.0V Max
- Low Input Capacitance
- Fast Switching Speed ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMN2451UFDQ-13#C7171986DIODES · UDFN1212-3 | DIODES | UDFN1212-3 | On request | ₹19.73 · 0 in stock | View | |
 | DMN2300UFD-7#C5248851DIODES · X1-DFN1212-3 | DIODES | X1-DFN1212-3 | On request | ₹12.25 · 0 in stock | View |
 | DMN2400UFD-7#C156391DIODES · X1-DFN1212-3 | DIODES | X1-DFN1212-3 | On request | ₹12.34 · 0 in stock | View |
 | DMN2300UFD-7-81#C260861DIODES · X1-DFN1212-3 | DIODES | X1-DFN1212-3 | On request | ₹8.23 · 0 in stock | View |
