DIODESDatasheet (PDF)

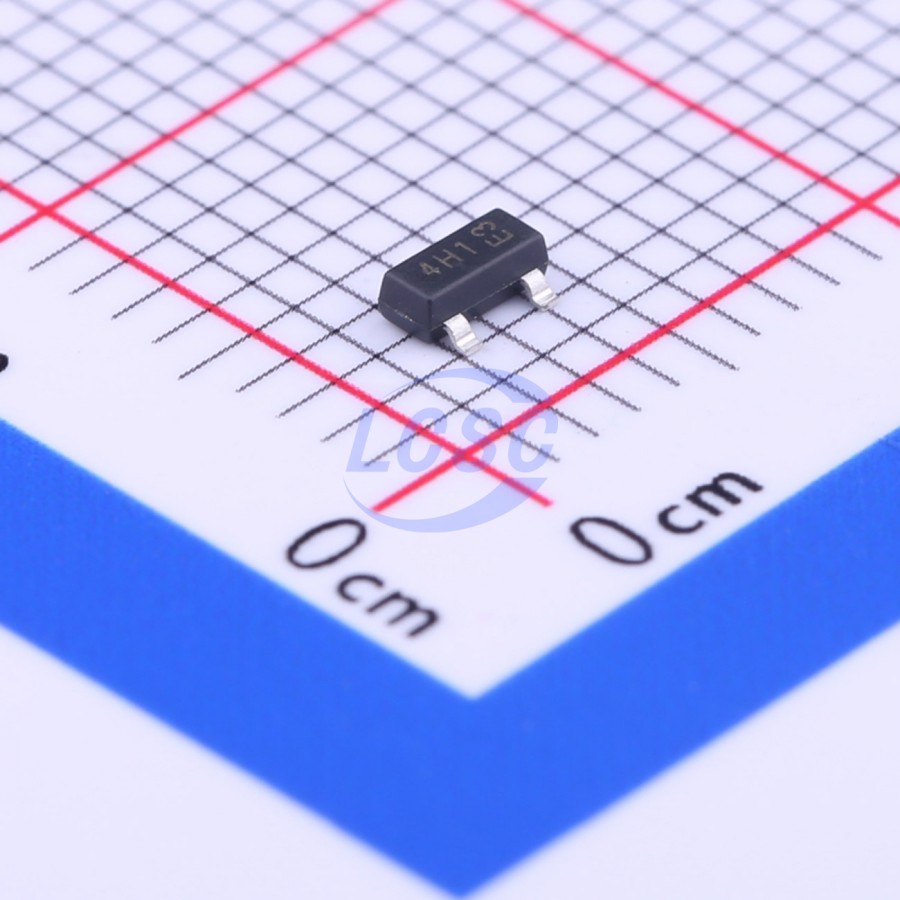

DMN24H11DS-7
N-Channel 240V 0.27A 1.2W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 240V 0.27A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN24H11DS-7
- Store part #
- C248309
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C248309
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.03 | ₹63.03 |
| 10+ | ₹49.98 | ₹499.80 |
| 30+ | ₹44.56 | ₹1,336.80 |
| 100+ | ₹37.60 | ₹3,760.00 |
| 500+ | ₹34.56 | ₹17,280.00 |
| 1,000+ | ₹32.60 | ₹32,600.00 |
1 × ₹63.03
₹63.03
excl. GST
₹74.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN24H11DS-7
₹63.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 240V
- Current - Continuous Drain(Id)
- 270mA
- Ciss-Input Capacitance
- 76.8pF
- Pd - Power Dissipation
- 1.2W
- Reverse Transfer Capacitance (Crss)
- 4.1pF
- RDS(on)
- 11Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- DC-DC converters
- Power-management functions
- Battery-operated systems and solid-state relays
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
Key features
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Small Surface-Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM2502NS3L#C20611859TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,820 | ₹36.79 · 2,820 in stock | View |
 | TPM2501NS3#C48995597TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 200 | ₹13.80 · 200 in stock | View |
 | RDR005N25TL#C2924216ROHM · SC-96 | ROHM | SC-96 | 3,200 | ₹27.47 · 3,200 in stock | View |
 | CMN1N40M#C52118377Cmos · SOT-23-3L | Cmos | SOT-23-3L | 3,685 | ₹12.81 · 3,685 in stock | View |
 | DMN24H11DS-TP#C53340872TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,425 | ₹18.57 · 2,425 in stock | View |
