DIODESDatasheet (PDF)

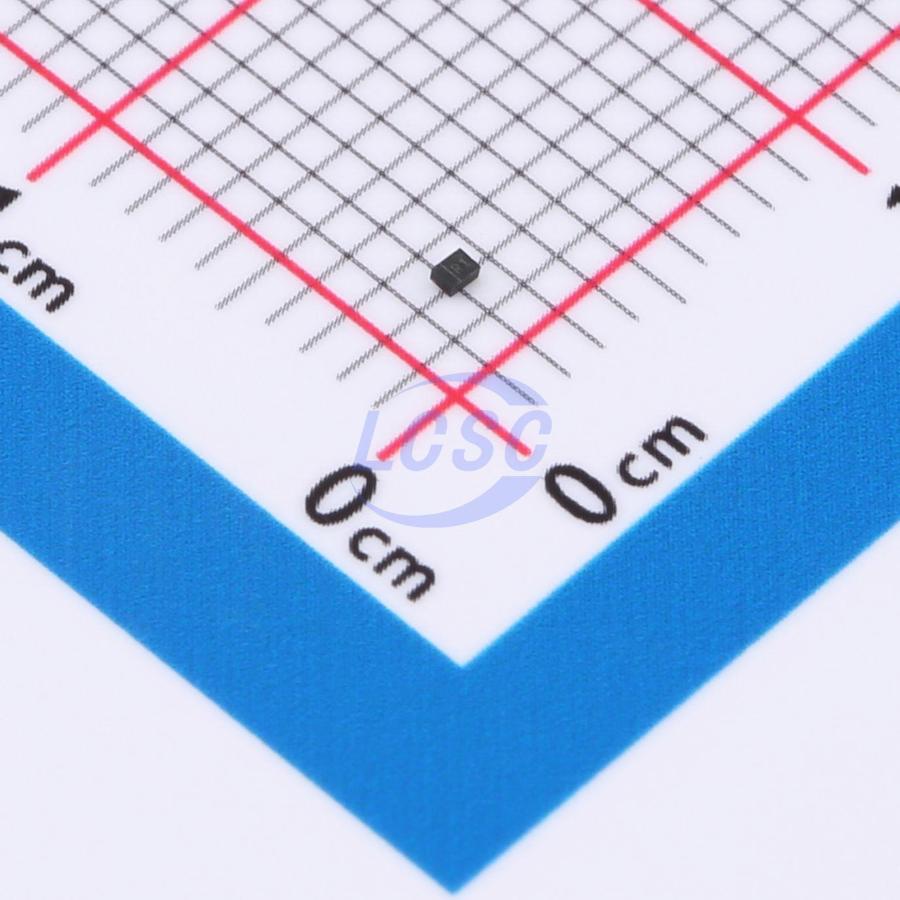

DMN2550UFA-7B
N-Channel 20V 0.6A 360mW Surface Mount X2-DFN0806-3
X2-DFN0806-3ROHS3 CompliantActive
MOSFET N-CH 20V 0.6A X2-DFN0806-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2550UFA-7B
- Store part #
- C5245284
- Package / case
- X2-DFN0806-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5245284
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.50 | ₹87.50 |
| 50+ | ₹13.92 | ₹696.00 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹10.78 | ₹5,390.00 |
| 2,500+ | ₹9.71 | ₹24,275.00 |
| 5,000+ | ₹9.17 | ₹45,850.00 |
5 × ₹17.50
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN2550UFA-7B
₹87.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 600mA
- Ciss-Input Capacitance
- 52.5pF
- Pd - Power Dissipation
- 360mW
- Reverse Transfer Capacitance (Crss)
- 5.2pF
- RDS(on)
- 450mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 880pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This MOSFET is designed to minimize the on-state resistance (Ros(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
- Analog Switch
Key features
- Low Package Profile, 0.4mm Maximum Package Height
- 0.48mm² Package Footprint, 16 Times Smaller than SOT23
- Low On-Resistance
- Very Low Gate Threshold Voltage, 1.0V Max
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMN3900UFA-7B#C672069DIODES · X2-DFN0806-3 | DIODES | X2-DFN0806-3 | 5 | ₹34.04 · 5 in stock | View | |
