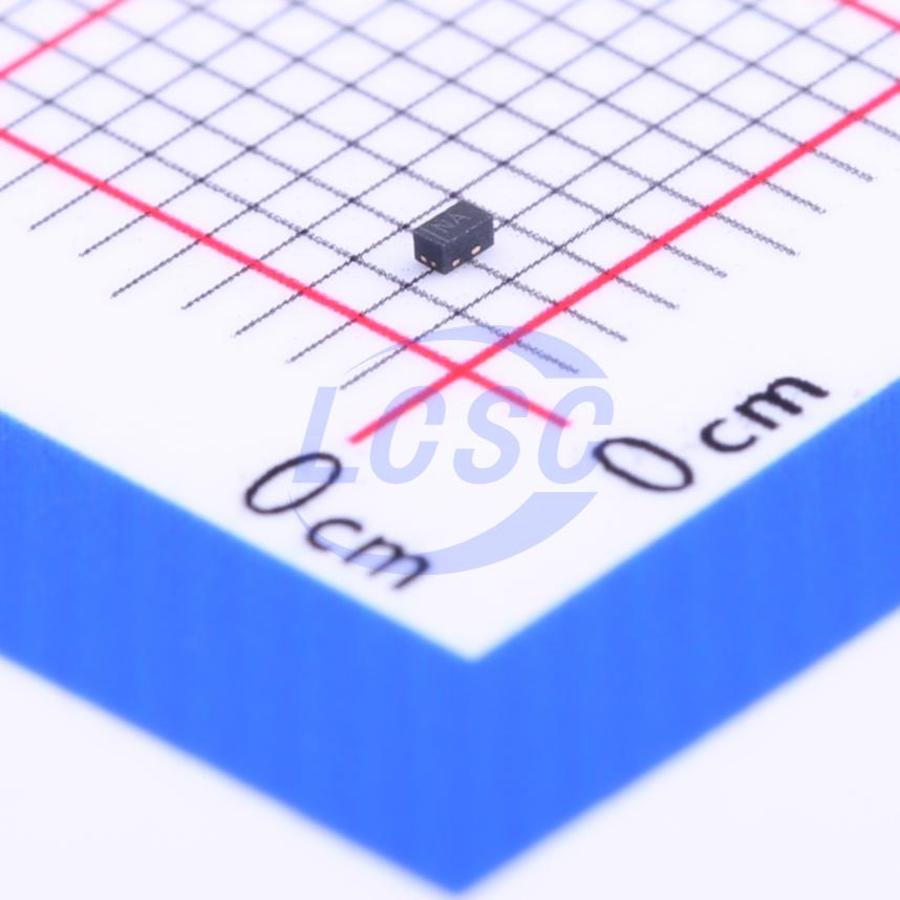

DMN2600UFB-7
N-Channel 25V 1.3A 0.54W Surface Mount X1-DFN1006-3
X1-DFN1006-3ROHS CompliantActive
MOSFET N-CH 25V 1.3A X1-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2600UFB-7
- Store part #
- C155506
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C155506
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.40 | ₹57.00 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.28 | ₹3,640.00 |
| 3,000+ | ₹6.62 | ₹19,860.00 |
| 6,000+ | ₹6.28 | ₹37,680.00 |
5 × ₹11.40
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2600UFB-7
₹57.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 7.56pF
- Ciss-Input Capacitance
- 70.13pF
- Pd - Power Dissipation
- 540mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 1.3A
- Reverse Transfer Capacitance (Crss)
- 5.59pF
- RDS(on)
- 600mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 850pC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.109 g
Overview
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Fast Switching Speed
- Ultra-Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- ESD Protected Gate 1kV Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMZ390UN,315#C458236Nexperia · SOT-883 | Nexperia | SOT-883 | 9,455 | ₹19.49 · 9,455 in stock | View |
 | LN237N3T5G#C383245LRC · SOT-883-3 | LRC | SOT-883-3 | 7,640 | ₹5.54 · 7,640 in stock | View |
 | HSBG3132#C53243977HUASHUO · DFN1006-3 | HUASHUO | DFN1006-3 | 8,540 | ₹4.97 · 8,540 in stock | View |
| CEDM7004 TR PBFREE#C6763673Central · SOT-883 | Central | SOT-883 | On request | ₹10.25 · 0 in stock | View | |
 | PMZB200UNEYL#C547292Nexperia · SOT-883-3 | Nexperia | SOT-883-3 | On request | ₹14.26 · 0 in stock | View |
