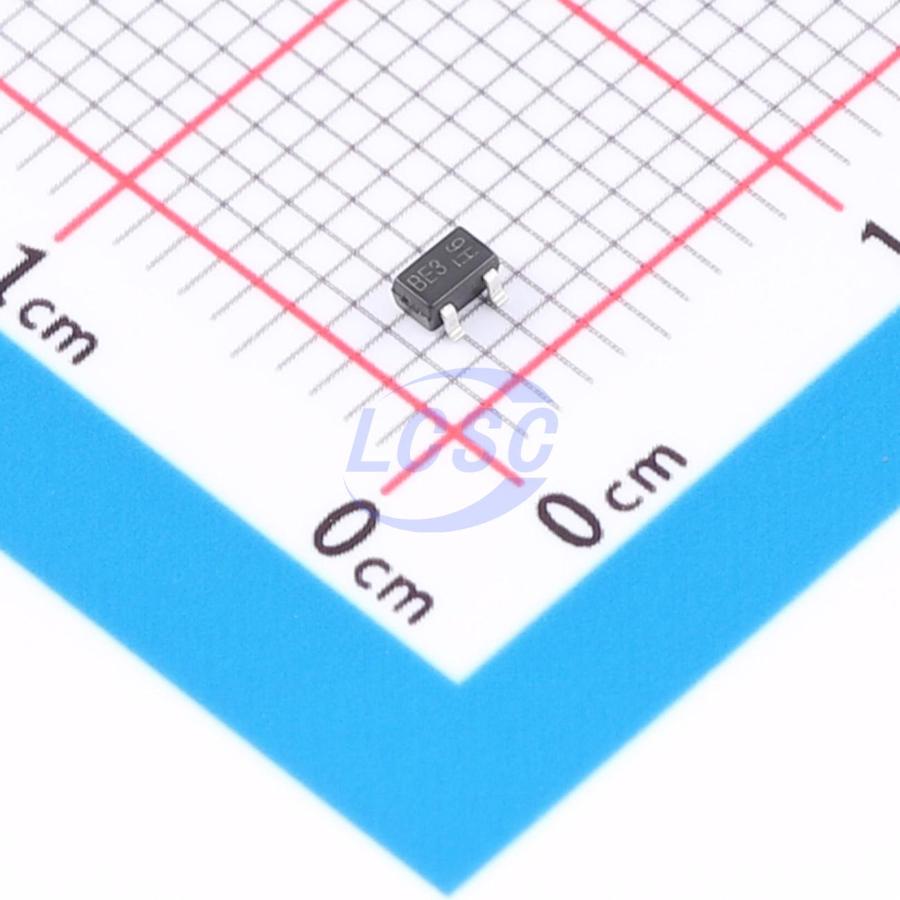

DMN2710UWQ-7
N-Channel 20V 0.9A 0.47W Surface Mount SOT-323
SOT-323ROHS3 CompliantActive
MOSFET N-CH 20V 0.9A SOT-323
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2710UWQ-7
- Store part #
- C5248856
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
92 in stock
#C5248856
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.62 | ₹70.62 |
| 10+ | ₹56.07 | ₹560.70 |
| 30+ | ₹49.98 | ₹1,499.40 |
| 100+ | ₹42.16 | ₹4,216.00 |
| 500+ | ₹38.68 | ₹19,340.00 |
| 1,000+ | ₹36.51 | ₹36,510.00 |
1 × ₹70.62
₹70.62
excl. GST
₹83.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2710UWQ-7
₹70.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 900mA
- Ciss-Input Capacitance
- 42pF
- Pd - Power Dissipation
- 470mW
- Reverse Transfer Capacitance (Crss)
- 6.5pF
- RDS(on)
- 450mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 600pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing Switch
- Power Management Functions
- DC-DC Converters
- Analog Switch
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN2310UW-7#C7264627DIODES · SOT-323 | DIODES | SOT-323 | 20 | ₹10.62 · 20 in stock | View |
 | WNM2021#C2940608TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 29,810 | ₹8.02 · 29,810 in stock | View |
 | DMG1012UW#C2940609TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 13,760 | ₹7.95 · 13,760 in stock | View |
 | TPM2021NEC3#C2940612TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 200 | ₹8.85 · 200 in stock | View |
 | PCJ3134KW#C2940611TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 340 | ₹6.84 · 340 in stock | View |
