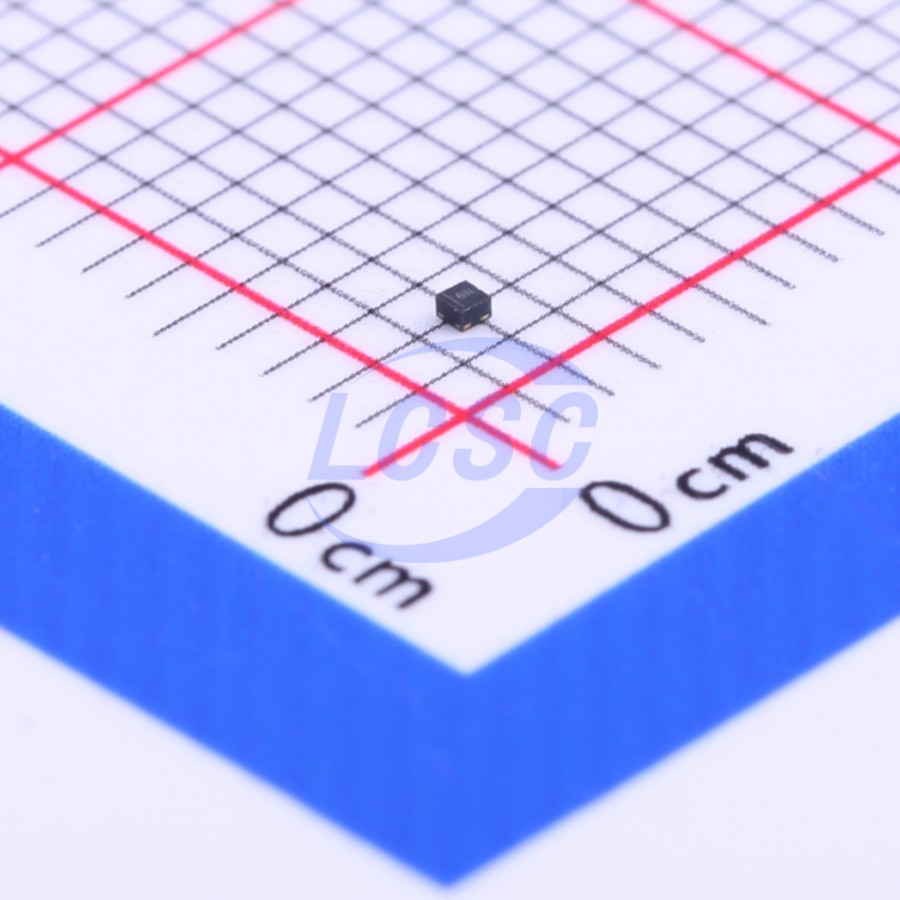

DMN2990UFZ-7B
320mW 20V 250mA 2.4Ω@1.5V 1 N-channel N-Channel X2-DFN0606-3 Single FETs, MOSFETs RoHS
X2-DFN0606-3ROHS3 CompliantActive
MOSFET N-CH 20V 250mA X2-DFN0606-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2990UFZ-7B
- Store part #
- C155298
- Package / case
- X2-DFN0606-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
445 in stock
#C155298
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.86 | ₹244.30 |
| 50+ | ₹39.02 | ₹1,951.00 |
| 150+ | ₹34.79 | ₹5,218.50 |
| 500+ | ₹29.53 | ₹14,765.00 |
| 2,500+ | ₹27.17 | ₹67,925.00 |
| 5,000+ | ₹25.77 | ₹1,28,850.00 |
5 × ₹48.86
₹244.30
excl. GST
₹288.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN2990UFZ-7B
₹244.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 8pF
- Ciss-Input Capacitance
- 55.2pF
- Pd - Power Dissipation
- 320mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 250mA
- Reverse Transfer Capacitance (Crss)
- 5.6pF
- RDS(on)
- 2.4Ω@1.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management function
- Analog switch
Key features
- Low profile, maximum package height 0.42mm
- Package dimensions: 0.62mm x 0.62mm
- Low on-resistance
- Ultra-low gate threshold voltage, maximum 1.0V
- Gate ESD protection
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMH550UNEH#C552955Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | 3,705 | ₹16.68 · 3,705 in stock | View |
| NX5008NBKHH#C6721543Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | 8,980 | ₹13.98 · 8,980 in stock | View | |
 | PMH400UNEH#C3288241Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | On request | ₹39.05 · 0 in stock | View |
| DMN31D4UFZ-7B#C19949856DIODES · X2-DFN0606-3 | DIODES | X2-DFN0606-3 | On request | ₹46.98 · 0 in stock | View | |
 | PMH260UNEH#C3277682Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | On request | ₹28.06 · 0 in stock | View |
