DIODESDatasheet (PDF)

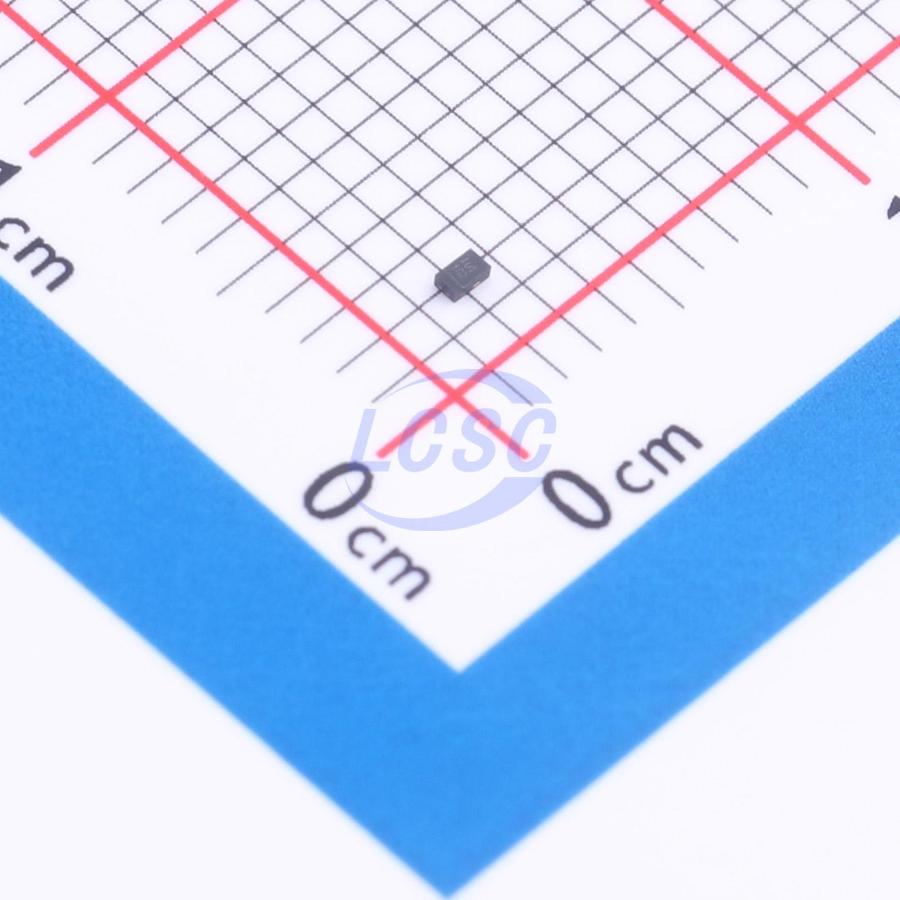

DMN2991UFB4-7B
N-Channel 20V 0.5A 0.36W Surface Mount X2-DFN1006-3
X2-DFN1006-3ROHS3 CompliantActive
MOSFET N-CH 20V 0.5A X2-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2991UFB4-7B
- Store part #
- C19949841
- Package / case
- X2-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19949841
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.41 | ₹82.05 |
| 50+ | ₹16.05 | ₹802.50 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹15.57 | ₹7,785.00 |
5 × ₹16.41
₹82.05
excl. GST
₹96.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per bag
DMN2991UFB4-7B
₹82.05 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 4.7pF
- Current - Continuous Drain(Id)
- 500mA
- Ciss-Input Capacitance
- 14.6pF
- Pd - Power Dissipation
- 360mW
- Reverse Transfer Capacitance (Crss)
- 3.2pF
- RDS(on)
- 1.8Ω@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 280pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 10,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.218 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- Load switches
Key features
- Footprint of Just 0.6mm² – Thirteen Times Smaller than SOT23
- 0.4mm Profile – Ideal for Low Profile Applications
- Low Gate Threshold Voltage
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMZ600UNEYL#C547286Nexperia · SOT-883 | Nexperia | SOT-883 | 6,080 | ₹4.06 · 6,080 in stock | View |
 | YJA3134KB#C20605534YANGJIE · DFN-3(0.6x1) | YANGJIE | DFN-3(0.6x1) | 80 | ₹5.05 · 80 in stock | View |
 | PMZB390UNEYL#C547296Nexperia · SOT-883-3 | Nexperia | SOT-883-3 | 9,960 | ₹27.51 · 9,960 in stock | View |
 | PMZ130UNEYL#C547280Nexperia · SOT-883 | Nexperia | SOT-883 | 15,235 | ₹21.17 · 15,235 in stock | View |
 | PMZ550UNEYL-CN#C42436708ChipNobo · DFN1006-3L | ChipNobo | DFN1006-3L | 720 | ₹5.17 · 720 in stock | View |
