DIODESDatasheet (PDF)

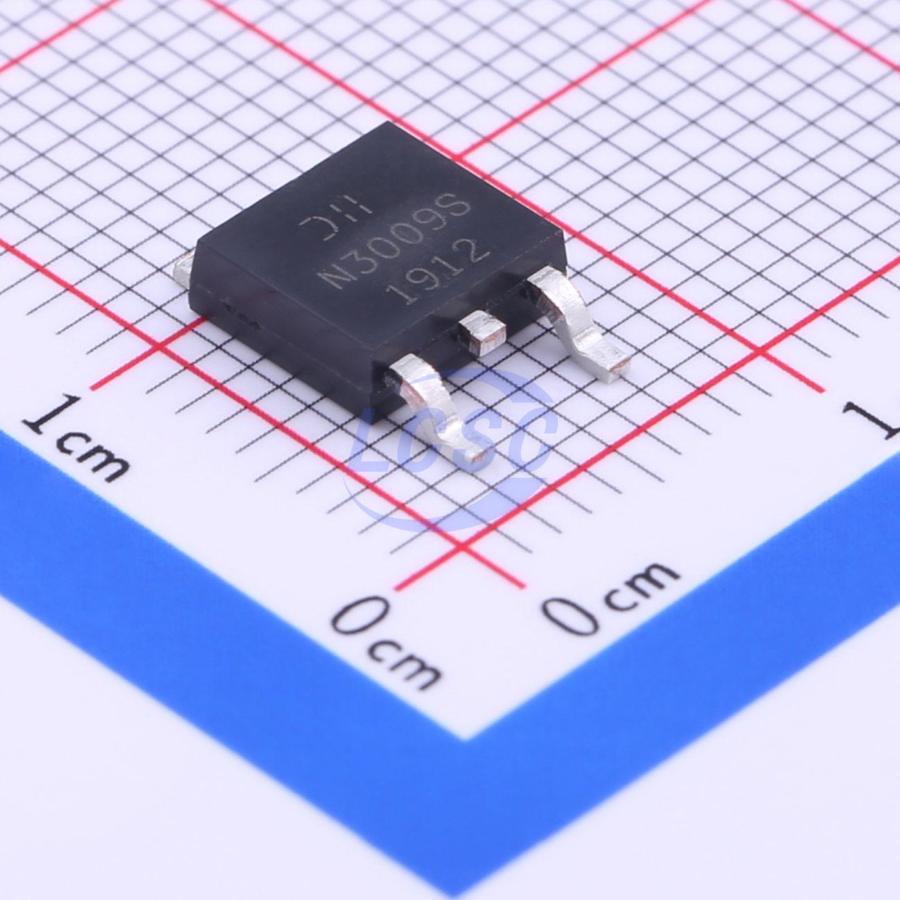

DMN3009SK3-13
N-Channel 30V 80A 44W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 30V 80A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3009SK3-13
- Store part #
- C397977
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C397977
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.96 | ₹189.80 |
| 50+ | ₹31.38 | ₹1,569.00 |
| 150+ | ₹28.58 | ₹4,287.00 |
| 500+ | ₹25.06 | ₹12,530.00 |
| 2,500+ | ₹23.50 | ₹58,750.00 |
| 5,000+ | ₹22.56 | ₹1,12,800.00 |
5 × ₹37.96
₹189.80
excl. GST
₹223.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN3009SK3-13
₹189.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 315pF
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 44W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 247pF
- RDS(on)
- 9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 5.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.516 g
Overview
Power Management Functions DC-DC Converters Industrial
Applications
- Power Management - DC-DC Converters - Industrial
Key features
- This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
- Low On-Resistance
- Low Input Capacitance
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | E030N5P2CL1#C46470329Existar · TO-252 | Existar | TO-252 | 120 | ₹13.23 · 120 in stock | View |
 | HSU80N03#C508795HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 1,400 | ₹16.64 · 1,400 in stock | View |
 | FH3090D#C2929022XIN FEI HONG · TO-252 | XIN FEI HONG | TO-252 | 1,940 | ₹13.22 · 1,940 in stock | View |
 | JMTK3005A#C2890425Jiangsu JieJie Microelectronics · TO-252 | Jiangsu JieJie Microelectronics | TO-252 | 4,755 | ₹23.73 · 4,755 in stock | View |
 | YJD80N03B#C699274YANGJIE · TO-252 | YANGJIE | TO-252 | 930 | ₹25.63 · 930 in stock | View |
