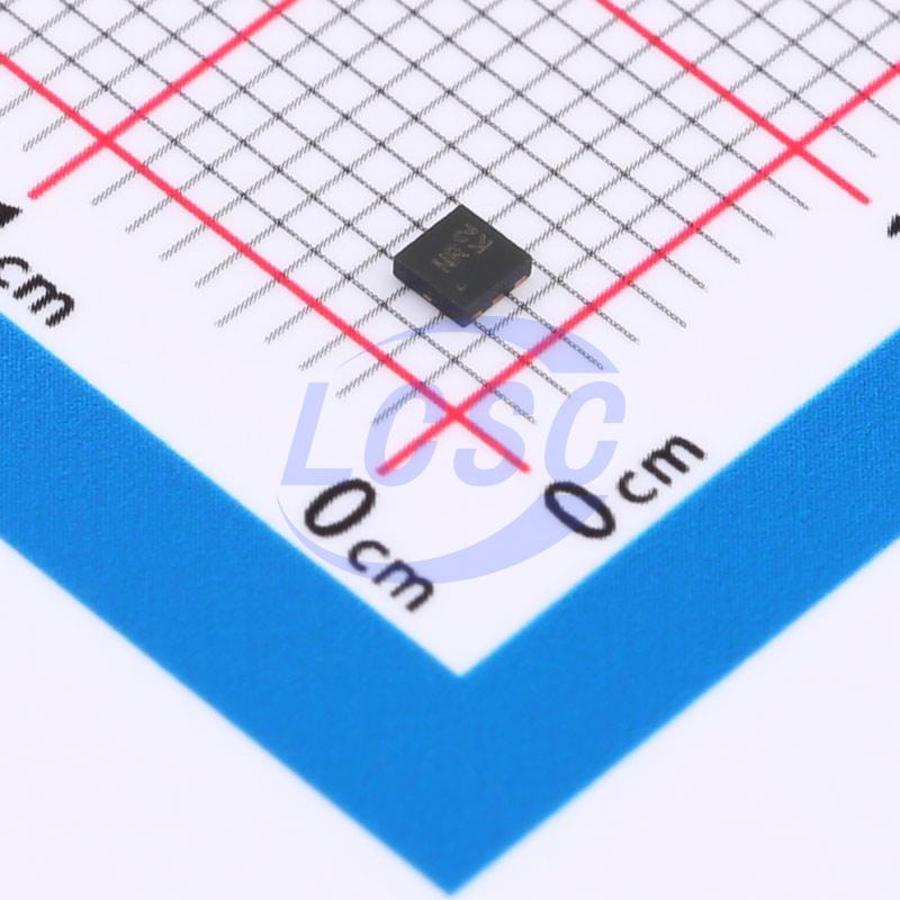

DMN3016LFDE-13
N-Channel 30V 10A 0.73W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET N-CH 30V 10A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3016LFDE-13
- Store part #
- C5245301
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
410 in stock
#C5245301
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.53 | ₹162.65 |
| 50+ | ₹25.82 | ₹1,291.00 |
| 150+ | ₹22.95 | ₹3,442.50 |
| 500+ | ₹19.37 | ₹9,685.00 |
| 2,500+ | ₹17.77 | ₹44,425.00 |
| 5,000+ | ₹16.82 | ₹84,100.00 |
5 × ₹32.53
₹162.65
excl. GST
₹191.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN3016LFDE-13
₹162.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 730mW
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25.1nC
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Battery Management Application
- Power Management Functions
- DC-DC Converters
Key features
- 0.6mm Profile – Ideal for Low Profile Applications
- PCB Footprint of 4mm2
- Low Gate Threshold Voltage
- Low On-Resistance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3016LFDF-7#C5245302DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 500 | ₹75.50 · 500 in stock | View |
 | DMN3016LFDFQ-7#C5248859DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 50 | ₹119.29 · 50 in stock | View |
 | SSM6K513NU,LF#C3008601TOSHIBA · UDFNB-6(2x2) | TOSHIBA | UDFNB-6(2x2) | 3,050 | ₹40.67 · 3,050 in stock | View |
 | YJQ13N03A#C2942399YANGJIE · DFN2020-6L | YANGJIE | DFN2020-6L | 905 | ₹18.18 · 905 in stock | View |
| PMPB10ENZ#C553012Nexperia · DFN2020-6 | Nexperia | DFN2020-6 | 2,405 | ₹40.71 · 2,405 in stock | View | |
