DIODESDatasheet (PDF)

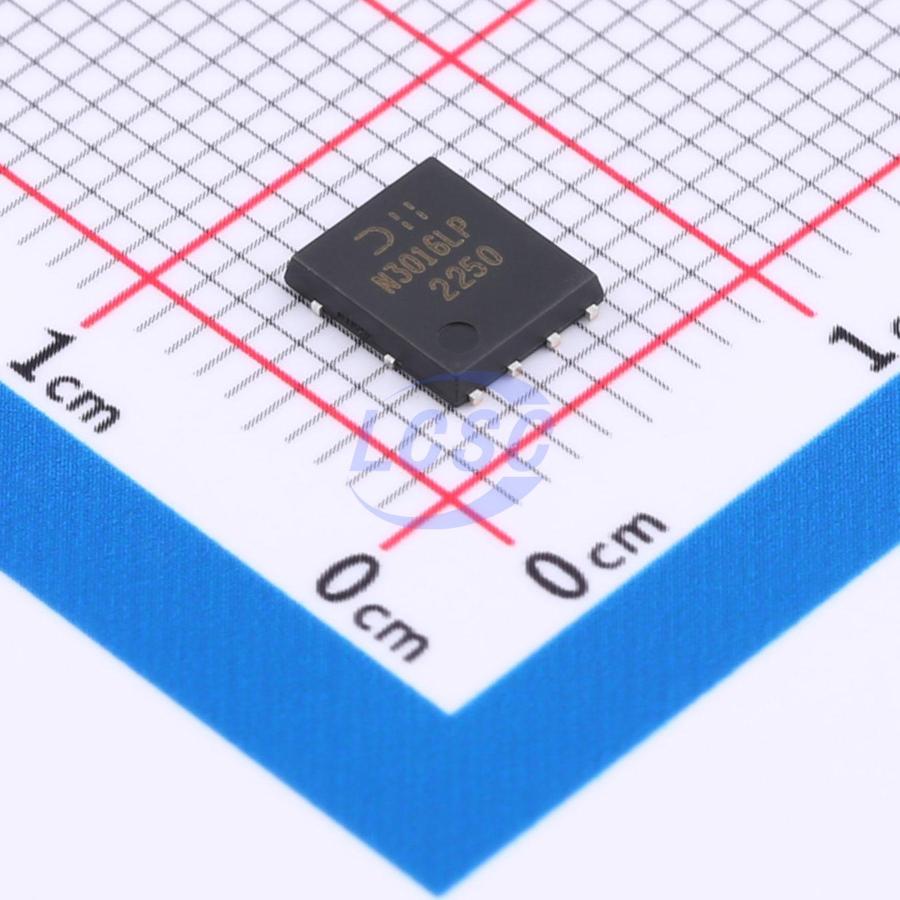

DMN3016LPS-13
N-Channel 30V 10.8A 2.75W Surface Mount PowerDI-5060-8
PowerDI-5060-8ROHS3 CompliantActive
MOSFET N-CH 30V 10.8A PowerDI-5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3016LPS-13
- Store part #
- C780831
- Package / case
- PowerDI-5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C780831
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.41 | ₹132.05 |
| 50+ | ₹25.84 | ₹1,292.00 |
| 150+ | ₹25.47 | ₹3,820.50 |
| 500+ | ₹25.10 | ₹12,550.00 |
5 × ₹26.41
₹132.05
excl. GST
₹155.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN3016LPS-13
₹132.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 119pF
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 2.75W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 10.8A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 16mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25.1nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.137 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- <1.1mm Package Profile – Ideal for Thin Applications
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 Standards for High Reliability
