DIODESDatasheet (PDF)

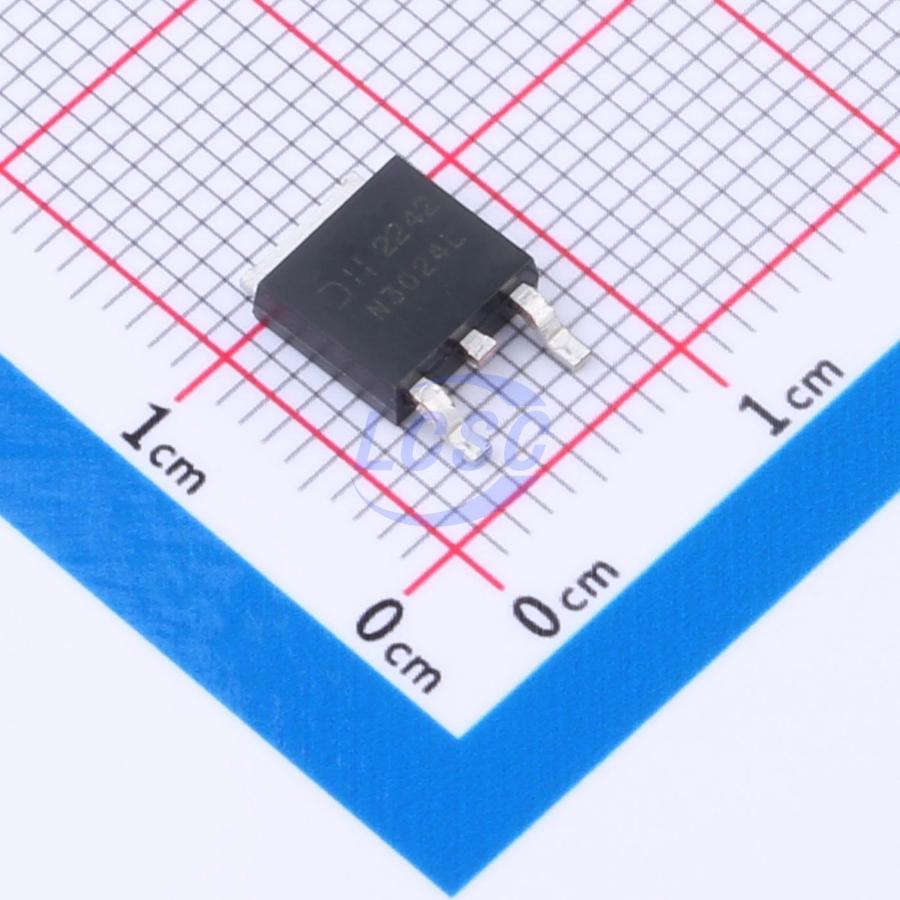

DMN3024LK3-13
N-Channel 30V 14.4A 4.1W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantSold out at source
MOSFET N-CH 30V 14.4A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3024LK3-13
- Store part #
- C3281404
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
691 in stock
#C3281404
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.53 | ₹77.53 |
| 10+ | ₹61.85 | ₹618.50 |
| 30+ | ₹55.10 | ₹1,653.00 |
| 100+ | ₹46.61 | ₹4,661.00 |
| 500+ | ₹42.69 | ₹21,345.00 |
| 1,000+ | ₹40.51 | ₹40,510.00 |
1 × ₹77.53
₹77.53
excl. GST
₹91.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN3024LK3-13
₹77.53 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 14.4A
- Ciss-Input Capacitance
- 608pF
- Pd - Power Dissipation
- 4.1W
- Reverse Transfer Capacitance (Crss)
- 71pF
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
This next-generation MOSFET is designed to minimize on-resistance RDS(ON) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- DC-DC Converter
- Power Management Functions
Key features
- Low on-resistance
- Fast switching speed
- Low gate drive
- "Green" component, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZE20N06#C700629VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 76 | ₹70.58 · 76 in stock | View |
 | 30N06-TD#C47637382TDSEMIC · TO-252-2L | TDSEMIC | TO-252-2L | 5,565 | ₹15.06 · 5,565 in stock | View |
 | XR30N04#C42456812XNRUSEMI · TO-252-3L | XNRUSEMI | TO-252-3L | 370 | ₹9.74 · 370 in stock | View |
 | CMD35N04A#C41410523Cmos · TO-252 | Cmos | TO-252 | 35 | ₹16.50 · 35 in stock | View |
 | FDD8451-HXY#C22366945HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹35.44 · 5 in stock | View |
