DIODESDatasheet (PDF)

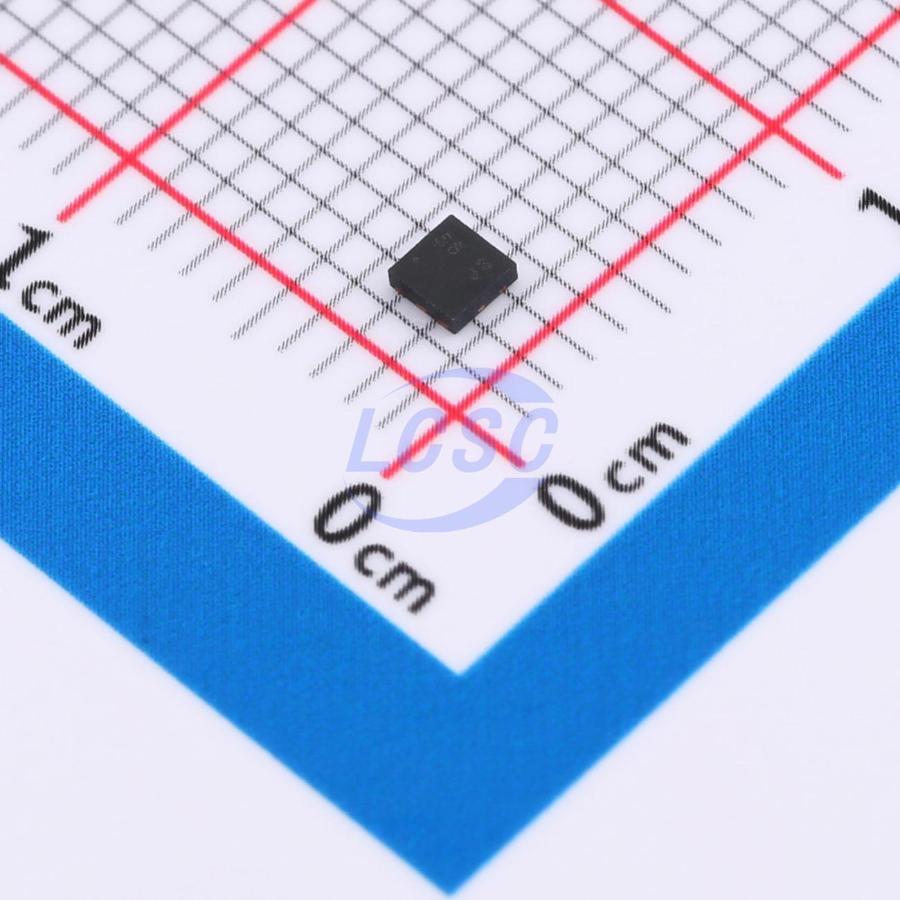

DMN3025LFDF-7
N-Channel 30V 8.3A 2.1W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET N-CH 30V 8.3A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3025LFDF-7
- Store part #
- C5245309
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C5245309
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.43 | ₹152.15 |
| 50+ | ₹29.95 | ₹1,497.50 |
| 150+ | ₹29.65 | ₹4,447.50 |
| 500+ | ₹29.34 | ₹14,670.00 |
5 × ₹30.43
₹152.15
excl. GST
₹179.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3025LFDF-7
₹152.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.3A
- Ciss-Input Capacitance
- 641pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 20.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
Key features
- 0.6mm Profile – Ideal for Low Profile Applications
- PCB Footprint of 4mm²
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9D23-40EX#C549991Nexperia · DFN-6-MD(2x2) | Nexperia | DFN-6-MD(2x2) | 2,989 | ₹82.22 · 2,989 in stock | View |
 | SP60N30NQ#C41354981Siliup · PDFN-6L(2x2) | Siliup | PDFN-6L(2x2) | 45 | ₹10.60 · 45 in stock | View |
 | LN3406DT2AG#C2912036LRC · DFN2020MD-6 | LRC | DFN2020MD-6 | 4,000 | ₹25.51 · 4,000 in stock | View |
 | PMPB23XNEAX-VB#C52209395VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 5 | ₹147.82 · 5 in stock | View |
 | PMPB20EN-VB#C52209396VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 5 | ₹147.82 · 5 in stock | View |
