HXY MOSFETDatasheet (PDF)

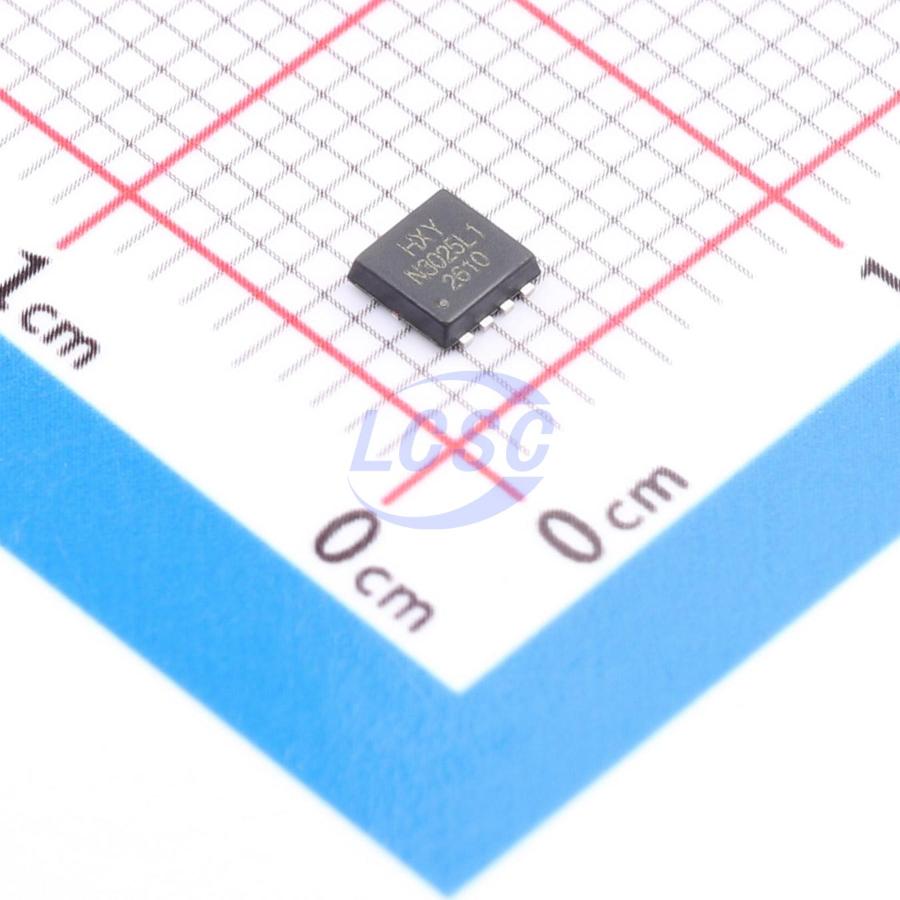

DMN3025LFG-13-HXY
30V 20A 5.5W 15mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMN3025LFG-13-HXY
- Store part #
- C54582855
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582855
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.37 | ₹171.85 |
| 50+ | ₹27.53 | ₹1,376.50 |
| 150+ | ₹24.61 | ₹3,691.50 |
| 500+ | ₹20.94 | ₹10,470.00 |
| 2,500+ | ₹17.28 | ₹43,200.00 |
| 5,000+ | ₹16.30 | ₹81,500.00 |
5 × ₹34.37
₹171.85
excl. GST
₹202.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMN3025LFG-13-HXY
₹171.85 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 79pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 490pF
- Pd - Power Dissipation
- 5.5W
- Reverse Transfer Capacitance (Crss)
- 61pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
DMN3025LFG - 13 utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage V<sub>DS</sub> = 30V, drain current I<sub>D</sub> = 20A
- On-resistance R<sub>DS(ON)</sub> < 20mΩ at gate-source voltage V<sub>GS</sub> = 10V
